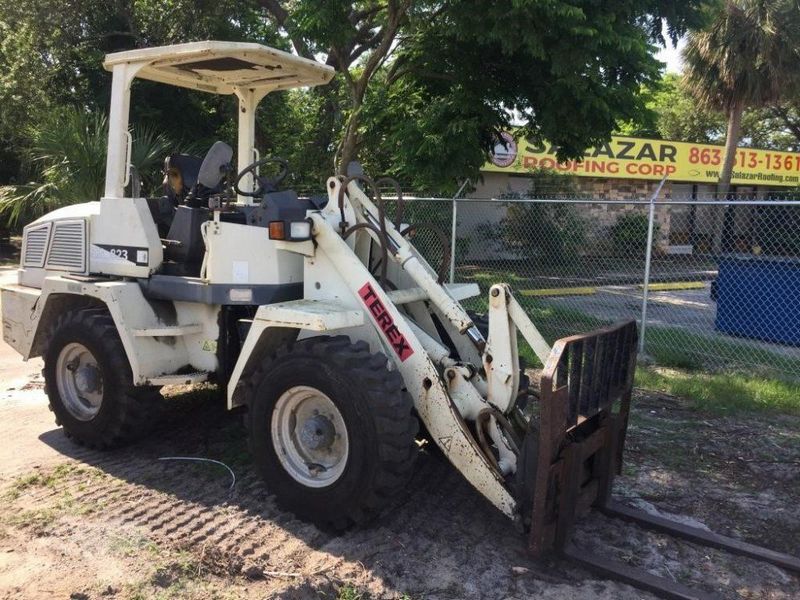

Terex SKL823
Browse All Terex or Wheel Loader Models
Contents:
Bucket
| Bucket Width | 5.58 ft in (1700 mm) |
Dimensions
| Ground Clearance | 1.42 ft in (430 mm) |
| Length With Bucket On Ground | 15.85 ft in (4830 mm) |
| Width Over Tires | 5.39 ft in (1640 mm) |
| Height To Top Of Cab | 8.58 ft in (2615 mm) |
| Wheelbase | 6.4 ft in (1950 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Perkins |
| Net Power | 49.7 hp (37 kw) |
| Displacement | 183.1 cu in (3 L) |
| Net Torque | 137.2 lb ft (186 Nm) |
Operational
| Operating Weight | 8598.1 lb (3900 kg) |
| Fuel Capacity | 19.1 gal (72 L) |
| Hydraulic System Fluid Capacity | 16.2 gal (61 L) |
| Engine Oil Fluid Capacity | 2.2 gal (8.2 L) |
| Transmission Fluid Capacity | 0.4 gal (1.5 L) |
| Front Axle/Diff Fluid Capacity | 1.8 gal (6.5 L) |
| Rear Axle/Diff Fluid Capacity | 1.8 gal (6.5 L) |
| Operating Voltage | 12 V |
| Rear Axle Oscillation | 12 degrees |
| Tire Size | 365/70 R 18 SPT 9 |
Hydraulic System
| Dump Time | 1.1 sec |
| Lower Time | 3.6 sec |
