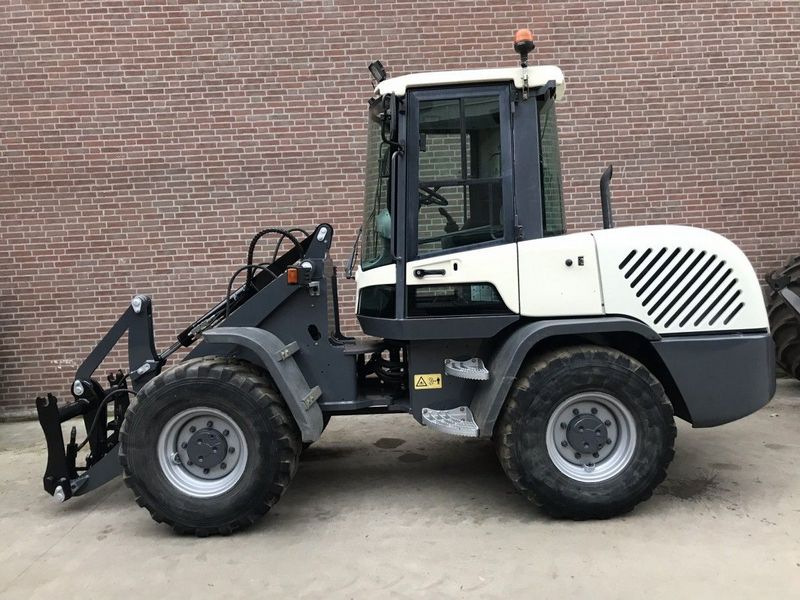

Terex TL80
Browse All Terex or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.37 ft in (2550 mm) |
| Bucket Capacity - Heaped | 1.18 yd3 (0.9 m3) |
| Bucket Width | 6.07 ft in (1850 mm) |
| Breakout Force | 10128 lb (45 kN) |
Dimensions
| Ground Clearance | 1.43 ft in (435 mm) |
| Length With Bucket On Ground | 16.28 ft in (4960 mm) |
| Width Over Tires | 5.84 ft in (1780 mm) |
| Height To Top Of Cab | 8.76 ft in (2670 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Hinge Pin - Max Height | 10.5 ft in (3200 mm) |
| Reach At Max Lift And Dump | 2.3 ft in (700 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | F4M 2011 |
| Net Power | 60 hp (44.8 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 189 cu in (3.1 L) |
| Aspiration | natural |
Operational
| Operating Weight | 11240 lb (5098.4 kg) |
| Fuel Capacity | 19.9 gal (75 L) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |
| Static Tipping Weight | 8577 lb (3890.5 kg) |
| Turning Radius | 13.6 ft in (4140 mm) |
| Operating Voltage | 12 V |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 405/70 R 18 SPT9 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 17 gal/min (64.4 L/min) |
