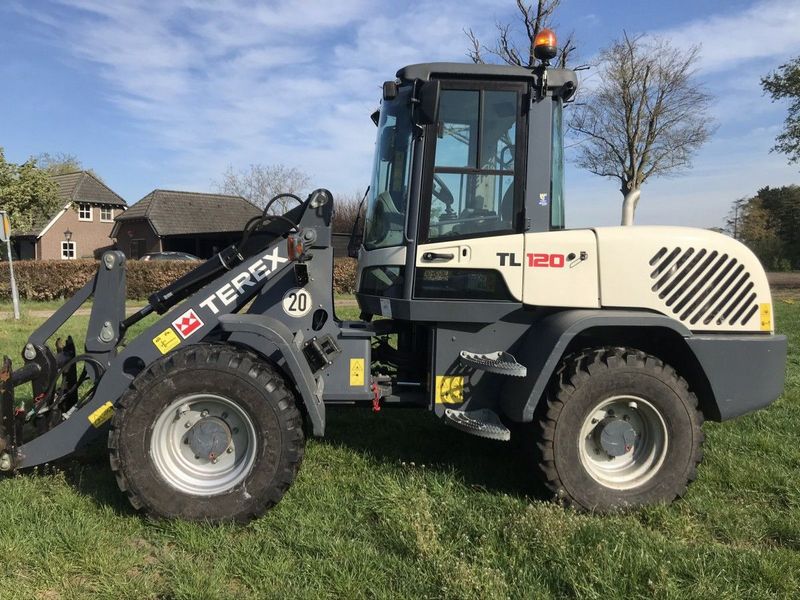

Terex TL120
Browse All Terex or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.03 ft in (2750 mm) |
| Bucket Capacity - Heaped | 1.6 yd3 (1.23 m3) |
| Bucket Width | 6.89 ft in (2100 mm) |
| Breakout Force | 13275 lb (59.05 kN) |
Dimensions
| Ground Clearance | 1.51 ft in (460 mm) |
| Length With Bucket On Ground | 18.49 ft in (5635 mm) |
| Width Over Tires | 6.5 ft in (1980 mm) |
| Height To Top Of Cab | 9.13 ft in (2780 mm) |
| Wheelbase | 7.52 ft in (2290 mm) |
| Hinge Pin - Max Height | 11.59 ft in (3530 mm) |
| Reach At Max Lift And Dump | 2.63 ft in (800 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104C-44 |
| Net Power | 84 hp (62.7 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 269 cu in (4.5 L) |
| Aspiration | natural |
Operational
| Operating Weight | 15656 lb (7101.5 kg) |
| Fuel Capacity | 29.1 gal (110 L) |
| Hydraulic System Fluid Capacity | 24.6 gal (93 L) |
| Static Tipping Weight | 11642 lb (5280.8 kg) |
| Turning Radius | 15.3 ft in (4640 mm) |
| Operating Voltage | 12 V |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 405/70 R 20 EM 01 Mitas |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 20 gal/min (75.8 L/min) |
