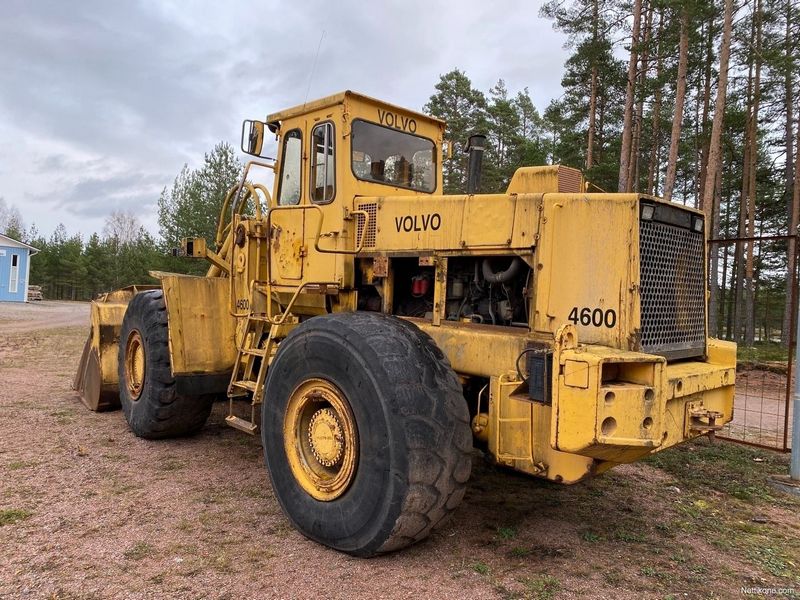

Volvo BM 4600
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.5 ft in (3200 mm) |
| Bucket Width | 10.5 ft in (3200 mm) |
| Bucket Capacity - Heaped | 4.98 yd3 (3.8 m3) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Length With Bucket On Ground | 26.91 ft in (8200 mm) |
| Width Over Tires | 9.85 ft in (3000 mm) |
| Height To Top Of Cab | 11.49 ft in (3500 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.46 ft in (4405 mm) |
| Reach At Max Lift And Dump | 3.78 ft in (1150 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD100A |
| Net Power | 252 hp (188 kw) |
| Gross Power | 264 hp (196.9 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 674 lb ft (913.9 Nm) |
| Displacement | 586 cu in (9.7 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 46517.6 lb (21100 kg) |
| Fuel Capacity | 95.2 gal (360 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Engine Oil Fluid Capacity | 8.2 gal (31 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 10.6 gal (40 L) |
| Front Axle/Diff Fluid Capacity | 8.2 gal (31 L) |
| Rear Axle/Diff Fluid Capacity | 8.2 gal (31 L) |
| Static Tipping Weight | 33730.8 lb (15300 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 26.5-25/20 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 31.1 mph (50.1 km/h) |
| Max Speed - Reverse | 31.1 mph (50.1 km/h) |
Hydraulic System
| Relief Valve Setting | 2465 psi (16995.6 kPa) |
| Pump Flow Capacity | 83.6 gal/min (316.5 L/min) |
| Raise Time | 7.8 sec |
| Dump Time | 4 sec |
| Lower Time | 3 sec |
| Pump Type | Vane |
