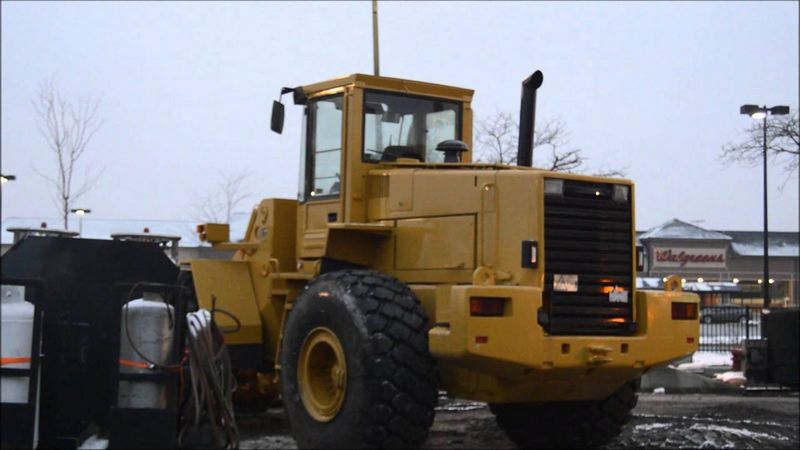

Volvo BM L150
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.27 ft in (3130 mm) |
| Bucket Capacity - Heaped | 4.58 yd3 (3.5 m3) |
| Bucket Width | 10.5 ft in (3200 mm) |
| Breakout Force | 44200 lb (196.62 kN) |
Dimensions
| Ground Clearance | 1.33 ft in (405 mm) |
| Length With Bucket On Ground | 26.38 ft in (8040 mm) |
| Width Over Tires | 9.19 ft in (2800 mm) |
| Height To Top Of Cab | 11.44 ft in (3485 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.03 ft in (4275 mm) |
| Reach At Max Lift And Dump | 3.78 ft in (1150 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 102 |
| Net Power | 231 hp (172.3 kw) |
| Gross Power | 245 hp (182.7 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 722.9 lb ft (980 Nm) |
| Displacement | 585.9 cu in (9.6 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 45500 lb (20638.5 kg) |
| Fuel Capacity | 89.6 gal (339 L) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
| Engine Oil Fluid Capacity | 7.7 gal (29 L) |
| Cooling System Fluid Capacity | 17.2 gal (65 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 12.5 gal (47 L) |
| Rear Axle/Diff Fluid Capacity | 11.9 gal (45 L) |
| Static Tipping Weight | 33157.6 lb (15040 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 23.5-25 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.3 mph (34.2 km/h) |
| Max Speed - Reverse | 14.7 mph (23.5 km/h) |
Hydraulic System
| Relief Valve Setting | 3046 psi (21001.5 kPa) |
| Pump Flow Capacity | 82.8 gal/min (313.4 L/min) |
| Raise Time | 6.7 sec |
| Dump Time | 1.9 sec |
| Lower Time | 3.2 sec |
| Pump Type | open center system |
