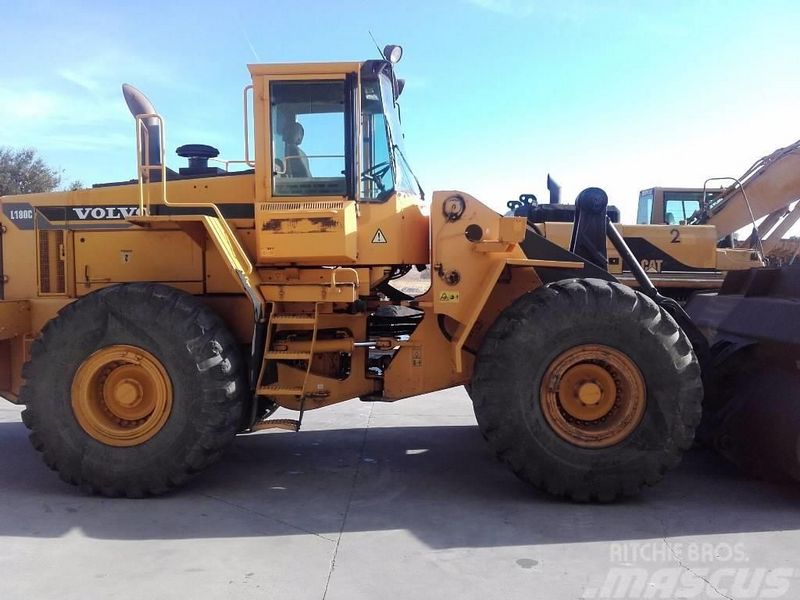

Volvo BM L180
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.08 ft in (3070 mm) |
| Bucket Capacity - Heaped | 6.28 yd3 (4.8 m3) |
| Bucket Width | 10.5 ft in (3200 mm) |
| Breakout Force | 40690 lb (181 kN) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Length With Bucket On Ground | 28.35 ft in (8640 mm) |
| Width Over Tires | 9.7 ft in (2955 mm) |
| Height To Top Of Cab | 11.68 ft in (3560 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.7 ft in (4480 mm) |
| Reach At Max Lift And Dump | 4.37 ft in (1330 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 122 |
| Net Power | 275 hp (205.1 kw) |
| Gross Power | 289 hp (215.6 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1017.9 lb ft (1380 Nm) |
| Displacement | 732.3 cu in (12 L) |
| Torque Measured @ | 1100 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 62800 lb (28485.7 kg) |
| Fuel Capacity | 89.6 gal (339 L) |
| Hydraulic System Fluid Capacity | 68.7 gal (260 L) |
| Engine Oil Fluid Capacity | 8.8 gal (33 L) |
| Cooling System Fluid Capacity | 21.2 gal (80 L) |
| Transmission Fluid Capacity | 12.7 gal (48 L) |
| Front Axle/Diff Fluid Capacity | 12.2 gal (46 L) |
| Rear Axle/Diff Fluid Capacity | 12.2 gal (46 L) |
| Static Tipping Weight | 38382.5 lb (17410 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 26.5-25 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.9 mph (35.1 km/h) |
| Max Speed - Reverse | 15 mph (24 km/h) |
Hydraulic System
| Relief Valve Setting | 3362 psi (23180.2 kPa) |
| Pump Flow Capacity | 82.8 gal/min (313.4 L/min) |
| Raise Time | 6.6 sec |
| Dump Time | 2.5 sec |
| Lower Time | 3.5 sec |
| Pump Type | open center system |
