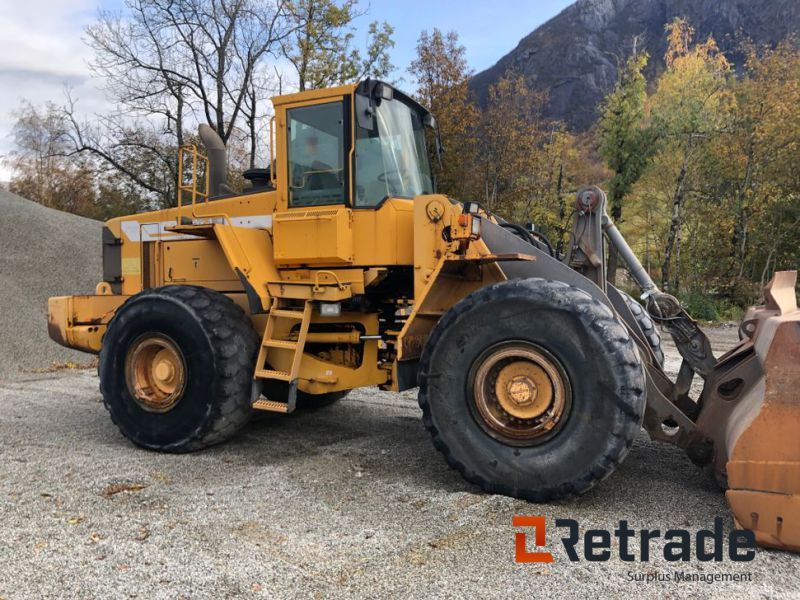

Volvo L150C
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.98 ft in (3040 mm) |
| Bucket Capacity - Heaped | 5.2 yd3 (3.98 m3) |
| Bucket Width | 10.5 ft in (3200 mm) |
| Breakout Force | 39630 lb (39630 -) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Length With Bucket On Ground | 27.04 ft in (8240 mm) |
| Width Over Tires | 9.68 ft in (2950 mm) |
| Height To Top Of Cab | 11.68 ft in (3560 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.28 ft in (4350 mm) |
| Reach At Max Lift And Dump | 4.01 ft in (1220 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 103 KCE |
| Net Power | 249 hp (185.7 kw) |
| Gross Power | 257 hp (191.7 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1025 lb ft (1389.8 Nm) |
| Displacement | 586 cu in (9.7 L) |
| Torque Measured @ | 1100 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 56879.3 lb (25800 kg) |
| Fuel Capacity | 84.1 gal (318 L) |
| Hydraulic System Fluid Capacity | 43.6 gal (165 L) |
| Engine Oil Fluid Capacity | 7.2 gal (27 L) |
| Cooling System Fluid Capacity | 18.5 gal (70 L) |
| Transmission Fluid Capacity | 9.3 gal (35 L) |
| Front Axle/Diff Fluid Capacity | 14.6 gal (55 L) |
| Rear Axle/Diff Fluid Capacity | 14.3 gal (54 L) |
| Static Tipping Weight | 36640 lb (16619.7 kg) |
| Turning Radius | 24.3 ft in (7395 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 26.5R25*L3 |
Transmission
| Transmission Type | automatic power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 20.9 mph (33.7 km/h) |
| Max Speed - Reverse | 14.3 mph (23.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3046 psi (21001.5 kPa) |
| Pump Flow Capacity | 82.7 gal/min (313.1 L/min) |
| Raise Time | 6.7 sec |
| Dump Time | 1.9 sec |
| Lower Time | 3.2 sec |
| Pump Type | vane pump |
