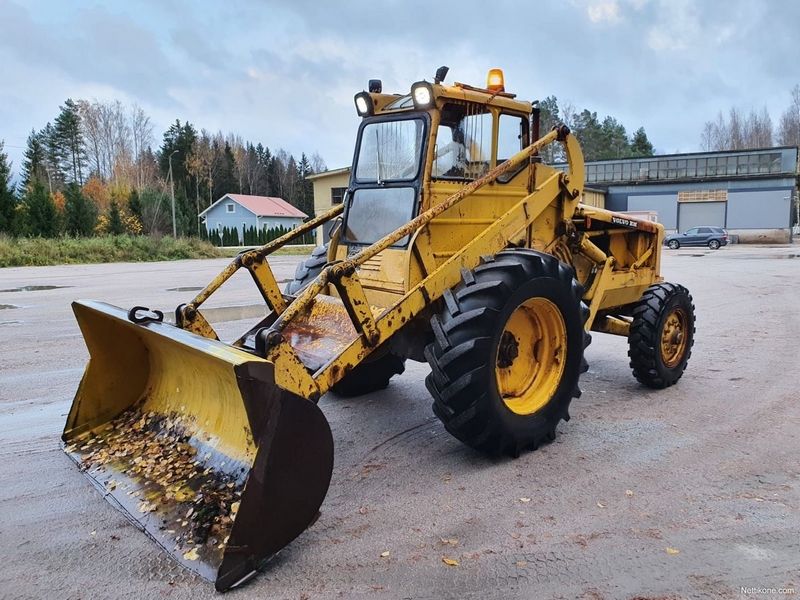

Volvo BM LM620
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.5 ft in (2895.6 mm) |
| Bucket Capacity - Struck | 0.9 yd3 (0.69 m3) |
| Bucket Capacity - Heaped | 3.9 yd3 (2.99 m3) |
Dimensions
| Ground Clearance | 1.08 ft in (329.19 mm) |
| Length With Bucket On Ground | 17.83 ft in (5434.59 mm) |
| Height To Top Of Cab | 8.25 ft in (2514.6 mm) |
| Wheelbase | 7.5 ft in (2286 mm) |
| Hinge Pin - Max Height | 12.58 ft in (3834.39 mm) |
| Reach At Max Lift And Dump | 2.08 ft in (633.99 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Model | BM1113A LH |
| Net Power | 63 hp (47 kw) |
| Gross Power | 69 hp (51.5 kw) |
| Max Torque | 18.5 lb ft (25 Nm) |
| Displacement | 230 cu in (3.8 L) |
| Aspiration | direct injection |
Operational
| Operating Weight | 13900 lb (6305 kg) |
| Turning Radius | 16 ft in (4876.8 mm) |
| Tire Size | front 16.9-30/10 rear 9.00-20/10 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.4 mph (29.7 km/h) |
| Max Speed - Reverse | 18.4 mph (29.7 km/h) |
Hydraulic System
| Relief Valve Setting | 1280 psi (8825.3 kPa) |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
