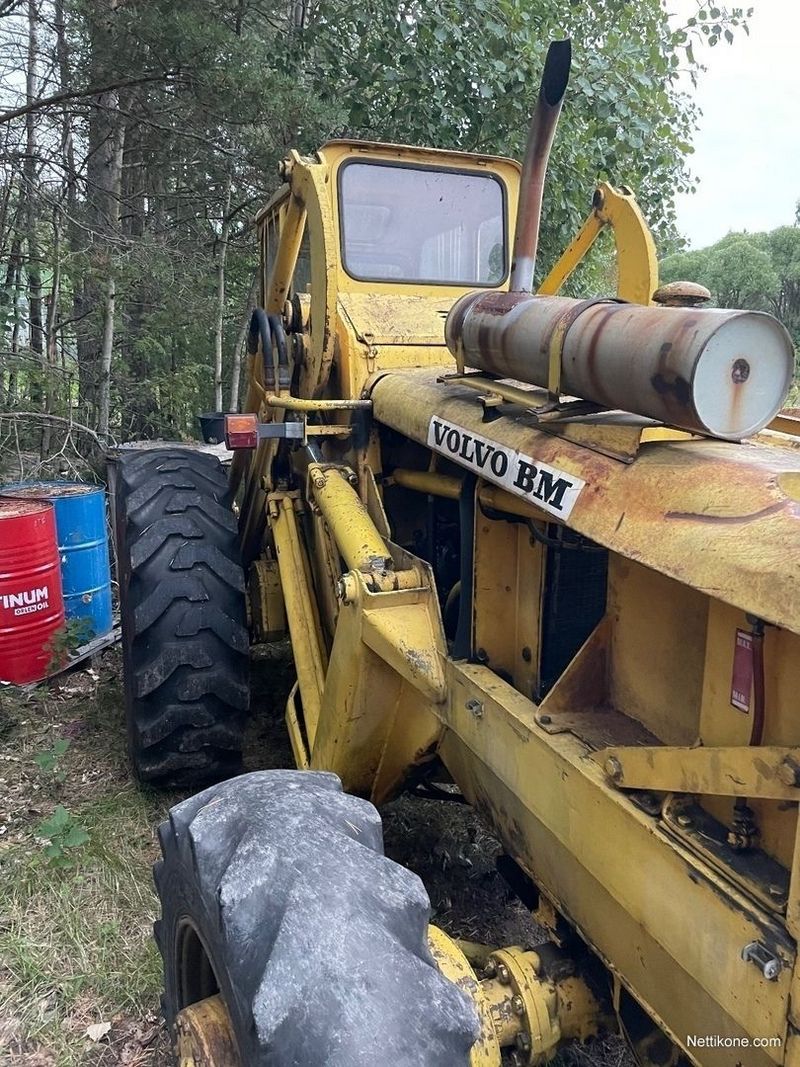

Volvo BM LM640
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.5 ft in (2895.6 mm) |
| Bucket Capacity - Struck | 1 yd3 (0.77 m3) |
| Bucket Capacity - Heaped | 4 yd3 (3.06 m3) |
Dimensions
| Ground Clearance | 1.08 ft in (329.19 mm) |
| Length With Bucket On Ground | 17.68 ft in (5385.82 mm) |
| Height To Top Of Cab | 8.27 ft in (2520.7 mm) |
| Wheelbase | 7.52 ft in (2292.1 mm) |
| Hinge Pin - Max Height | 12.6 ft in (3840.48 mm) |
| Reach At Max Lift And Dump | 2.06 ft in (627.89 mm) |
Engine
| Number Of Cylinders | 3 |
| Engine Make | 2244 |
| Engine Model | BM- 1113 ALH |
| Net Power | 63 hp (47 kw) |
| Gross Power | 69 hp (51.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 181 lb ft (245.5 Nm) |
| Displacement | 230 cu in (3.8 L) |
| Aspiration | direct injection |
Operational
| Operating Weight | 14550 lb (6599.8 kg) |
| Turning Radius | 18 ft in (5486.4 mm) |
| Tire Size | front 16.9-30/10 rear 12.4-24/10 |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.4 mph (29.7 km/h) |
| Max Speed - Reverse | 18.4 mph (29.7 km/h) |
Hydraulic System
| Relief Valve Setting | 1280 psi (8825.3 kPa) |
| Pump Flow Capacity | 30.8 gal/min (116.6 L/min) |
