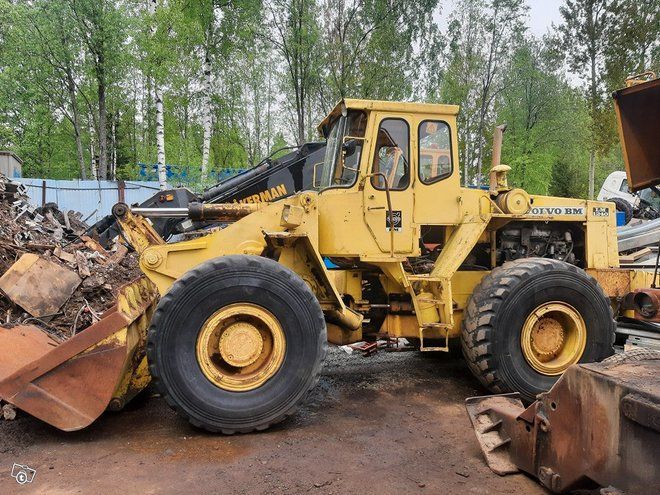

Volvo BM LM1640
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.68 ft in (2950 mm) |
| Bucket Capacity - Heaped | 3.93 yd3 (3 m3) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 26.09 ft in (7950 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Wheelbase | 11.39 ft in (3470 mm) |
| Hinge Pin - Max Height | 13.13 ft in (4000 mm) |
| Reach At Max Lift And Dump | 3.78 ft in (1150 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D11 R 41 |
| Net Power | 202 hp (150.7 kw) |
| Gross Power | 215 hp (160.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 570 lb ft (772.9 Nm) |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 36376.3 lb (16500 kg) |
| Static Tipping Weight | 23810 lb (10800 kg) |
| Turning Radius | 20.7 ft in (6300 mm) |
| Tire Size | 23.5-25/16 |
Transmission
| Transmission Type | hydraulically operated planetary gearbox |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26.1 mph (42 km/h) |
| Max Speed - Reverse | 26.1 mph (42 km/h) |
Hydraulic System
| Relief Valve Setting | 1990 psi (13720.6 kPa) |
| Pump Flow Capacity | 95.2 gal/min (360 L/min) |
