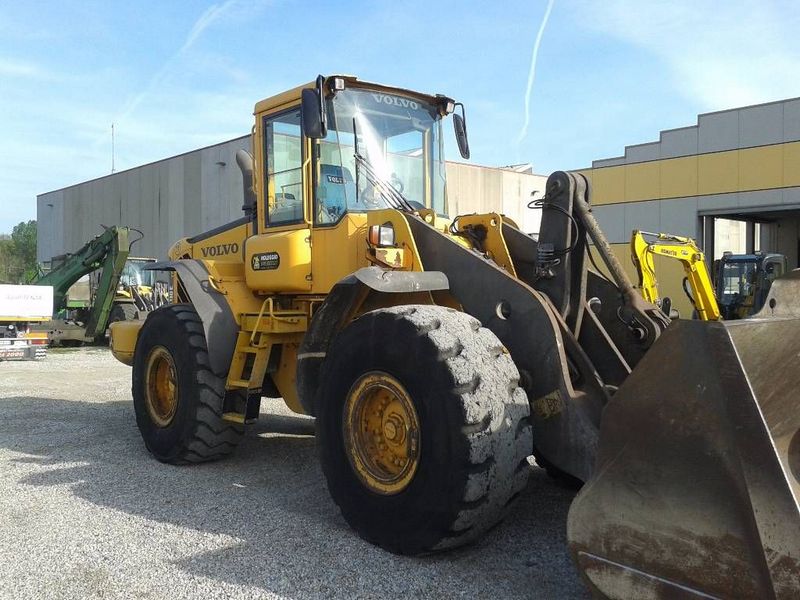

Volvo L110E
Browse All Volvo or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 1.4 ft in (426.72 mm) |
| Length With Bucket On Ground | 26.5 ft in (8077.2 mm) |
| Width Over Tires | 8.81 ft in (2682.24 mm) |
| Height To Top Of Cab | 11 ft in (3352.8 mm) |
| Wheelbase | 10.5 ft in (3200.4 mm) |
| Hinge Pin - Max Height | 13.2 ft in (4023.36 mm) |
| Reach At Max Lift And Dump | 4 ft in (1219.2 mm) |
Engine
| Engine Make | 2244 |
| Engine Model | D7ELBE3 |
| Net Power | 226.6 hp (169 kw) |
| Gross Power | 228 hp (170.1 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 6 lb ft (8.2 Nm) |
| Displacement | 433 cu in (7.1 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | TURBOCHARGED |
Operational
| Operating Weight | 40013.9 lb (18150.1 kg) |
| Fuel Capacity | 71.1 gal (269.2 L) |
| Hydraulic System Fluid Capacity | 35.1 gal (132.9 L) |
| Engine Oil Fluid Capacity | 5.5 gal (20.9 L) |
| Cooling System Fluid Capacity | 18.5 gal (70.1 L) |
| Transmission Fluid Capacity | 10 gal (37.9 L) |
| Front Axle/Diff Fluid Capacity | 9.5 gal (36 L) |
| Rear Axle/Diff Fluid Capacity | 10.8 gal (40.9 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 13 degrees |
| Tire Size | 23.5 |
Transmission
| Transmission Type | POWERSHIFT |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23 mph (37.1 km/h) |
| Max Speed - Reverse | 23 mph (37.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3421 psi (23587 kPa) |
| Pump Flow Capacity | 38.3 gal/min (145 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 2.1 sec |
| Lower Time | 2.5 sec |
