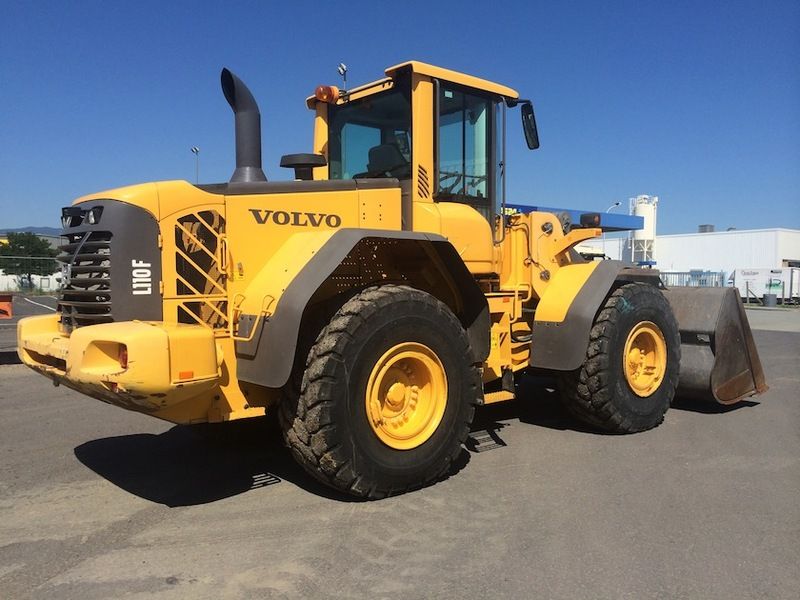

Volvo L110F
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.99 ft in (2740 mm) |
| Bucket Width | 9.45 ft in (2880 mm) |
| Bucket Capacity - Heaped | 3.67 yd3 (2.8 m3) |
Dimensions
| Ground Clearance | 1.38 ft in (420 mm) |
| Length With Bucket On Ground | 26.48 ft in (8070 mm) |
| Width Over Tires | 8.76 ft in (2670 mm) |
| Height To Top Of Cab | 11.03 ft in (3360 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Hinge Pin - Max Height | 13.19 ft in (4020 mm) |
| Reach At Max Lift And Dump | 4.04 ft in (1230 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D7ELBE3 |
| Net Power | 226.7 hp (169 kw) |
| Gross Power | 228 hp (170 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 790 lb ft (1071.1 Nm) |
| Displacement | 433 cu in (7.1 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and Intercooled |
Operational
| Operating Weight | 40013.9 lb (18150 kg) |
| Fuel Capacity | 71.1 gal (269 L) |
| Hydraulic System Fluid Capacity | 35.2 gal (133 L) |
| Engine Oil Fluid Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 18.5 gal (70 L) |
| Transmission Fluid Capacity | 10.1 gal (38 L) |
| Front Axle/Diff Fluid Capacity | 9.6 gal (36 L) |
| Rear Axle/Diff Fluid Capacity | 10.9 gal (41 L) |
| Static Tipping Weight | 29630.2 lb (13440 kg) |
| Turning Radius | 20.9 ft in (6340 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 13 degrees |
| Tire Size | 23.5 R25 |
Transmission
| Transmission Type | Automatic Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 23 mph (37 km/h) |
| Max Speed - Reverse | 23 mph (37 km/h) |
Hydraulic System
| Relief Valve Setting | 3421 psi (23587 kPa) |
| Pump Flow Capacity | 38.4 gal/min (145 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 2.1 sec |
| Lower Time | 2.5 sec |
