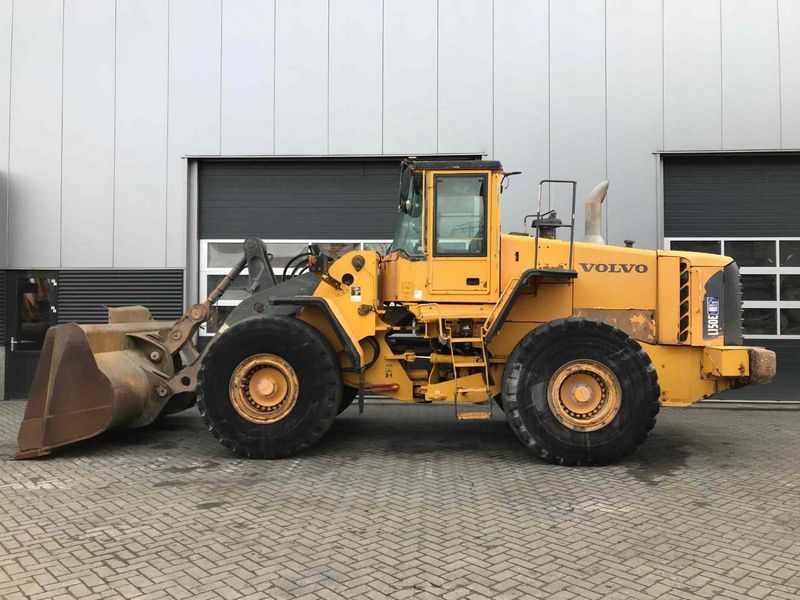

Volvo L150E
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.36 ft in (2850 mm) |
| Bucket Capacity - Heaped | 5.63 yd3 (4.3 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
| Breakout Force | 39588.86 lb (176.1 kN) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 29.17 ft in (8890 mm) |
| Width Over Tires | 9.68 ft in (2950 mm) |
| Height To Top Of Cab | 11.75 ft in (3580 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.28 ft in (4350 mm) |
| Reach At Max Lift And Dump | 4.7 ft in (1430 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D9A LB E2 |
| Net Power | 284 hp (211.8 kw) |
| Gross Power | 287 hp (214.1 kw) |
| Power Measured @ | 1600 rpm |
| Max Torque | 1062.1 lb ft (1440 Nm) |
| Displacement | 573.7 cu in (9.4 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 51455.9 lb (23340 kg) |
| Fuel Capacity | 88.5 gal (335 L) |
| Hydraulic System Fluid Capacity | 41.3 gal (156 L) |
| Engine Oil Fluid Capacity | 10.5 gal (39.5 L) |
| Cooling System Fluid Capacity | 11.8 gal (44.5 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 11.9 gal (45 L) |
| Rear Axle/Diff Fluid Capacity | 14.6 gal (55 L) |
| Static Tipping Weight | 38316.4 lb (17380 kg) |
| Turning Radius | 24 ft in (7290 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 30 degrees |
| Tire Size | 26.5R25 L3 |
Transmission
| Transmission Type | Volvo HTE210 |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.5 mph (39.4 km/h) |
| Max Speed - Reverse | 24.5 mph (39.4 km/h) |
Hydraulic System
| Relief Valve Setting | 3626 psi (25000 kPa) |
| Pump Flow Capacity | 47.6 gal/min (180 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 2 sec |
| Lower Time | 3.7 sec |
