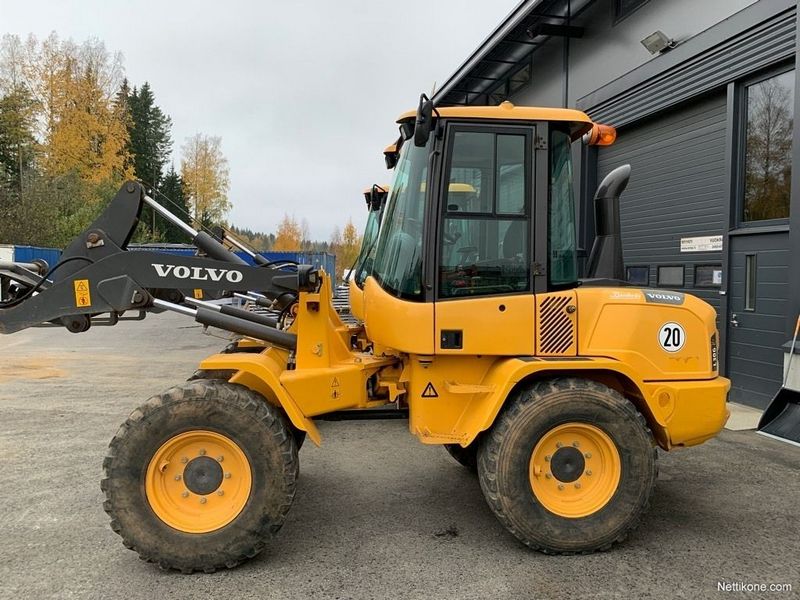

Volvo L30
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.01 ft in (2440 mm) |
| Bucket Capacity - Heaped | 1.31 yd3 (1 m3) |
| Bucket Width | 5.91 ft in (1800 mm) |
| Breakout Force | 9734.23 lb (43.3 kN) |
Dimensions
| Ground Clearance | 1.55 ft in (470 mm) |
| Length With Bucket On Ground | 17.39 ft in (5300 mm) |
| Width Over Tires | 5.77 ft in (1758 mm) |
| Height To Top Of Cab | 8.88 ft in (2705 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Hinge Pin - Max Height | 10.55 ft in (3215 mm) |
| Reach At Max Lift And Dump | 2.53 ft in (770 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4L 1011FT |
| Net Power | 58 hp (43.3 kw) |
| Gross Power | 61 hp (45.5 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 147.6 lb ft (200 Nm) |
| Displacement | 166.6 cu in (2.8 L) |
| Torque Measured @ | 1800 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 10494.1 lb (4760 kg) |
| Fuel Capacity | 22.8 gal (86 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Engine Oil Fluid Capacity | 2.8 gal (10.5 L) |
| Front Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Rear Axle/Diff Fluid Capacity | 3.2 gal (12 L) |
| Static Tipping Weight | 8046.9 lb (3650 kg) |
| Turning Radius | 14 ft in (4240 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 12.5-20 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic System
| Relief Valve Setting | 3045.8 psi (21000 kPa) |
| Pump Flow Capacity | 13.8 gal/min (52 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.6 sec |
| Lower Time | 3.1 sec |
| Pump Type | gear type |
