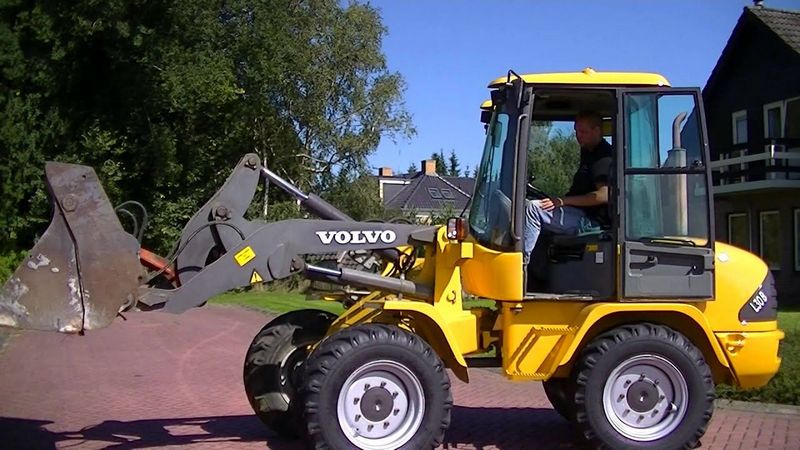

Volvo L30B
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.13 ft in (2475 mm) |
| Bucket Capacity - Heaped | 1.44 yd3 (1.11 m3) |
| Bucket Width | 6.24 ft in (1900 mm) |
| Breakout Force | 10791 lb (10791 -) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Length With Bucket On Ground | 17.26 ft in (5260 mm) |
| Width Over Tires | 5.77 ft in (1758 mm) |
| Height To Top Of Cab | 8.9 ft in (2710 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Hinge Pin - Max Height | 10.5 ft in (3200 mm) |
| Reach At Max Lift And Dump | 2.45 ft in (745 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF4L 1011F |
| Net Power | 65.8 hp (49 kw) |
| Gross Power | 68.4 hp (51 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 161 lb ft (218.3 Nm) |
| Torque Measured @ | 1900 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 12170 lb (5520.3 kg) |
| Fuel Capacity | 22.8 gal (86 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65 L) |
| Engine Oil Fluid Capacity | 2.8 gal (10.5 L) |
| Front Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Rear Axle/Diff Fluid Capacity | 3.2 gal (12 L) |
| Static Tipping Weight | 9370 lb (4250.2 kg) |
| Turning Radius | 14.1 ft in (4275 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 12.5-20 IND. SG |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 18.7 mph (30 km/h) |
| Max Speed - Reverse | 18.7 mph (30 km/h) |
Hydraulic System
| Relief Valve Setting | 3336 psi (23000.9 kPa) |
| Pump Flow Capacity | 13.7 gal/min (51.9 L/min) |
| Raise Time | 6.5 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3.5 sec |
| Pump Type | gear type |
