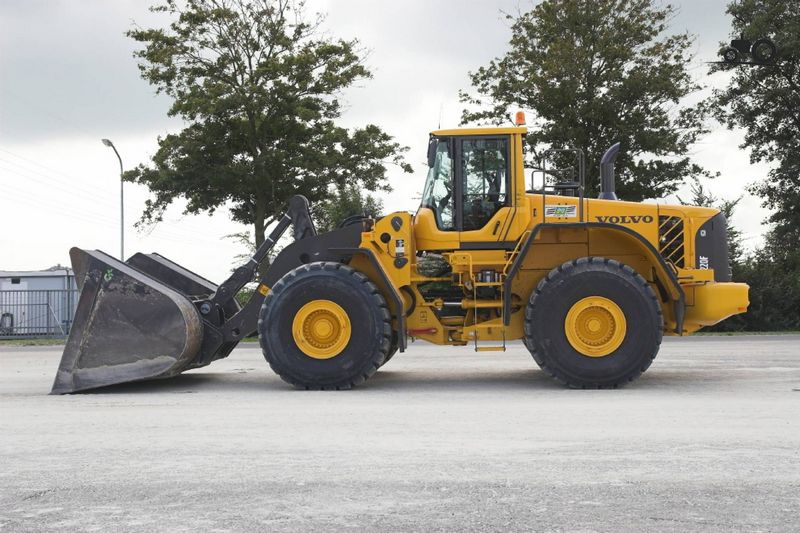

Volvo L220F
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.86 ft in (3310 mm) |
| Bucket Width | 11.16 ft in (3400 mm) |
| Bucket Capacity - Heaped | 6.41 yd3 (4.91 m3) |
Dimensions
| Ground Clearance | 1.78 ft in (540 mm) |
| Length With Bucket On Ground | 29.7 ft in (9050 mm) |
| Width Over Tires | 10.41 ft in (3170 mm) |
| Height To Top Of Cab | 12.24 ft in (3730 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
| Hinge Pin - Max Height | 15.33 ft in (4670 mm) |
| Reach At Max Lift And Dump | 4.14 ft in (1260 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D12DLBE3 |
| Net Power | 347.4 hp (259 kw) |
| Gross Power | 350.1 hp (261 kw) |
| Power Measured @ | 1600 rpm |
| Max Torque | 1301.8 lb ft (1765 Nm) |
| Displacement | 732.3 cu in (12 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged and Intercooled |
Operational
| Operating Weight | 68762.2 lb (31190 kg) |
| Fuel Capacity | 88.5 gal (335 L) |
| Hydraulic System Fluid Capacity | 59.8 gal (226 L) |
| Engine Oil Fluid Capacity | 12.7 gal (48 L) |
| Cooling System Fluid Capacity | 11.1 gal (42 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 20.4 gal (77 L) |
| Rear Axle/Diff Fluid Capacity | 18.8 gal (71 L) |
| Static Tipping Weight | 52403.9 lb (23770 kg) |
| Turning Radius | 25.4 ft in (7735 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 15 degrees |
| Tire Size | 29.5R25 L3 |
Transmission
| Transmission Type | Automatic Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 22.4 mph (36 km/h) |
Hydraulic System
| Relief Valve Setting | 3771 psi (26000.2 kPa) |
| Pump Flow Capacity | 52.6 gal/min (199 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.6 sec |
| Lower Time | 3.2 sec |
