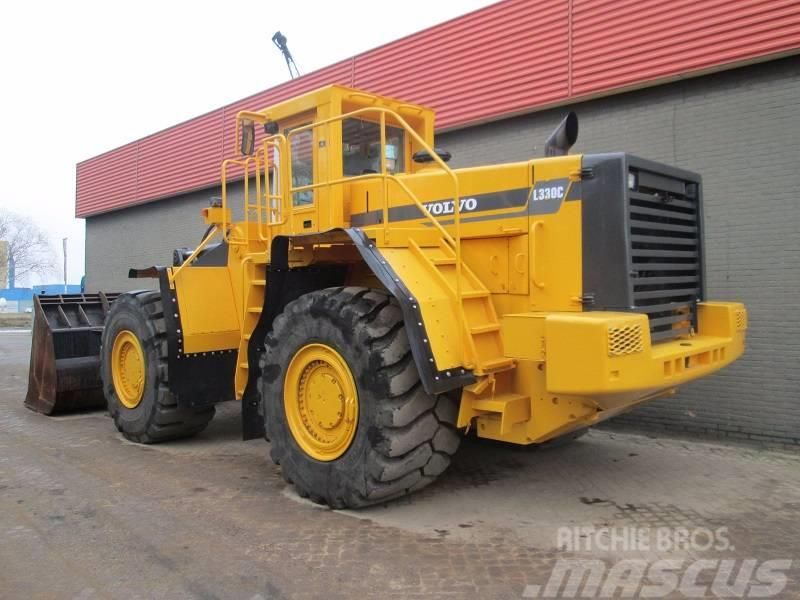

Volvo L330C
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 12.01 ft in (3660 mm) |
| Bucket Capacity - Heaped | 9.03 yd3 (6.9 m3) |
| Bucket Capacity - Struck | 7.72 yd3 (5.9 m3) |
| Bucket Width | 13.03 ft in (3970 mm) |
| Breakout Force | 105120 lb (105120 -) |
Dimensions
| Ground Clearance | 1.81 ft in (550 mm) |
| Length With Bucket On Ground | 33.08 ft in (10080 mm) |
| Width Over Tires | 11.91 ft in (3630 mm) |
| Height To Top Of Cab | 13.69 ft in (4170 mm) |
| Wheelbase | 13.33 ft in (4060 mm) |
| Hinge Pin - Max Height | 16.54 ft in (5040 mm) |
| Reach At Max Lift And Dump | 5.71 ft in (1740 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 164 KAE |
| Net Power | 498 hp (371.4 kw) |
| Gross Power | 503 hp (375.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1748 lb ft (2370 Nm) |
| Displacement | 984 cu in (16.2 L) |
| Torque Measured @ | 1000 rpm |
| Aspiration | Turbocharged and Intercooled |
Operational
| Operating Weight | 106770 lb (48430.1 kg) |
| Fuel Capacity | 183.1 gal (693 L) |
| Hydraulic System Fluid Capacity | 145.9 gal (552 L) |
| Engine Oil Fluid Capacity | 16.2 gal (61 L) |
| Cooling System Fluid Capacity | 23.8 gal (90 L) |
| Transmission Fluid Capacity | 24.4 gal (92 L) |
| Front Axle/Diff Fluid Capacity | 18 gal (68.1 L) |
| Rear Axle/Diff Fluid Capacity | 18 gal (68.1 L) |
| Static Tipping Weight | 77668.9 lb (35230 kg) |
| Turning Radius | 29.7 ft in (9050 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 35/65R33 XLD D1*L-4 |
Transmission
| Transmission Type | Power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.3 mph (34.3 km/h) |
| Max Speed - Reverse | 12.4 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3118 psi (21497.9 kPa) |
| Pump Flow Capacity | 196 gal/min (742 L/min) |
| Raise Time | 8.5 sec |
| Dump Time | 1.8 sec |
| Lower Time | 4.5 sec |
| Pump Type | axial piston |
