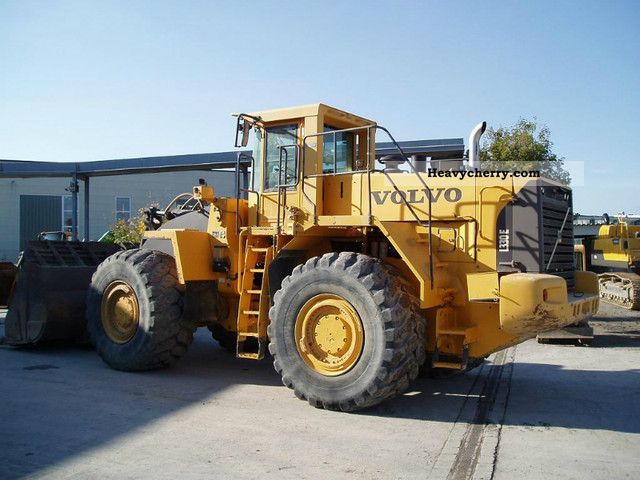

Volvo L330E
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 11.49 ft in (3500 mm) |
| Bucket Capacity - Heaped | 9.03 yd3 (6.9 m3) |
| Breakout Force | _ - (453.6 kN) |
Dimensions
| Ground Clearance | 1.88 ft in (570 mm) |
| Length With Bucket On Ground | 34.55 ft in (10530 mm) |
| Height To Top Of Cab | 13.78 ft in (4200 mm) |
| Wheelbase | 13.33 ft in (4060 mm) |
| Reach At Max Lift And Dump | 7 ft in (2132 mm) |
Engine
| Engine Make | 2244 |
| Net Power | 496.2 hp (370 kw) |
Operational
| Operating Weight | 110583.9 lb (50160 kg) |
| Fuel Capacity | 183.1 gal (693 L) |
| Static Tipping Weight | 78418.5 lb (35570 kg) |
| Tire Size | 35/65R33 RL5K L5 |
Transmission
| Transmission Type | Volvo HTE 305 |
