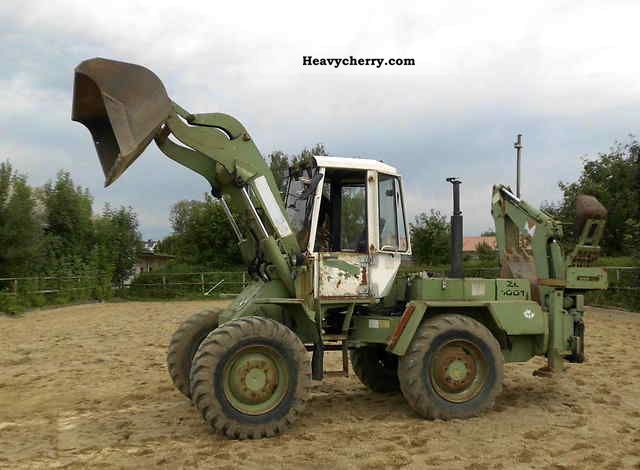

Zettelmeyer ZL1001
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.01 ft in (2745 mm) |
| Breakout Force | 13488.54 lb (60 kN) |
| Bucket Capacity - Heaped | 1.71 yd3 (1.3 m3) |
| Bucket Capacity - Struck | 1.44 yd3 (1.11 m3) |
| Bucket Width | 7.39 ft in (2250 mm) |
Dimensions
| Ground Clearance | 2.01 ft in (610 mm) |
| Length With Bucket On Ground | 18.9 ft in (5760 mm) |
| Height To Top Of Cab | 9.95 ft in (3030 mm) |
| Wheelbase | 7.88 ft in (2400 mm) |
| Hinge Pin - Max Height | 11.39 ft in (3470 mm) |
| Reach At Max Lift And Dump | 2.33 ft in (710 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | F4L 913 |
| Net Power | 80 hp (59.7 kw) |
| Gross Power | 84 hp (62.7 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 188.1 lb ft (255 Nm) |
| Displacement | 249.4 cu in (4.1 L) |
| Torque Measured @ | 1550 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 16358.4 lb (7420 kg) |
| Fuel Capacity | 29.1 gal (110 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Engine Oil Fluid Capacity | 3.1 gal (11.5 L) |
| Front Axle/Diff Fluid Capacity | 3.6 gal (13.5 L) |
| Rear Axle/Diff Fluid Capacity | 3.9 gal (14.5 L) |
| Static Tipping Weight | 13778.9 lb (6250 kg) |
| Turning Radius | 16.1 ft in (4900 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 15.5-25 10PR (L-2) |
Transmission
| Transmission Type | hydrostatic full powershift |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic System
| Relief Valve Setting | 2610.7 psi (18000 kPa) |
| Pump Flow Capacity | 29.8 gal/min (112.5 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1 sec |
| Lower Time | 3 sec |
| Pump Type | gear type |
