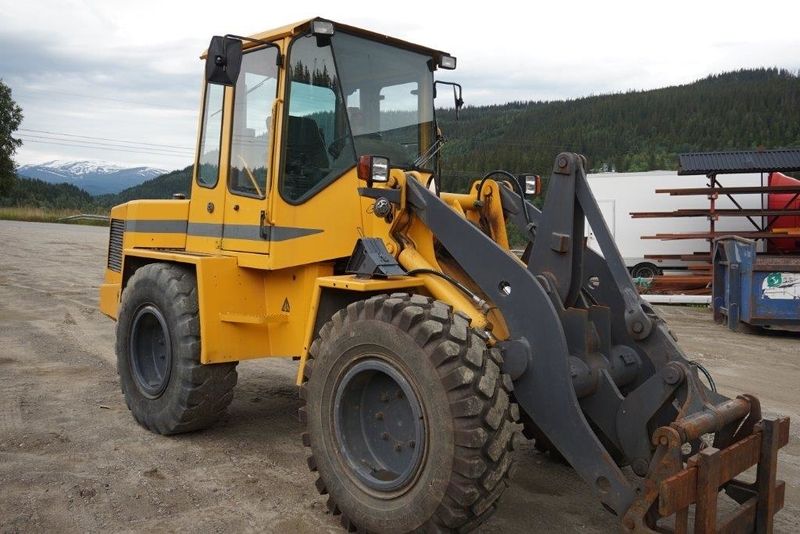

Zettelmeyer ZL1002i
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.91 ft in (2715 mm) |
| Bucket Capacity - Heaped | 1.57 yd3 (1.2 m3) |
| Bucket Width | 7.39 ft in (2250 mm) |
| Breakout Force | 14500.18 lb (64.5 kN) |
Dimensions
| Ground Clearance | 1.94 ft in (590 mm) |
| Length With Bucket On Ground | 18.97 ft in (5780 mm) |
| Width Over Tires | 7.09 ft in (2160 mm) |
| Height To Top Of Cab | 9.39 ft in (2860 mm) |
| Wheelbase | 7.88 ft in (2400 mm) |
| Hinge Pin - Max Height | 11.39 ft in (3470 mm) |
| Reach At Max Lift And Dump | 2.63 ft in (800 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | KHD BF 4M 1013 E |
| Net Power | 88 hp (65.7 kw) |
| Gross Power | 92 hp (68.7 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 289.2 lb ft (392 Nm) |
| Displacement | 290.5 cu in (4.8 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbo + water cooled |
Operational
| Operating Weight | 16755.2 lb (7600 kg) |
| Fuel Capacity | 26.5 gal (100 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Engine Oil Fluid Capacity | 3.2 gal (12 L) |
| Front Axle/Diff Fluid Capacity | 3.4 gal (12.5 L) |
| Rear Axle/Diff Fluid Capacity | 3.6 gal (13.3 L) |
| Static Tipping Weight | 11684.6 lb (5300 kg) |
| Turning Radius | 15.8 ft in (4800 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 15.5-25 |
Transmission
| Transmission Type | hydrostatic full power shift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3335.9 psi (23000 kPa) |
| Pump Flow Capacity | 28.1 gal/min (106 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1.5 sec |
| Lower Time | 5 sec |
| Pump Type | axial piston |
