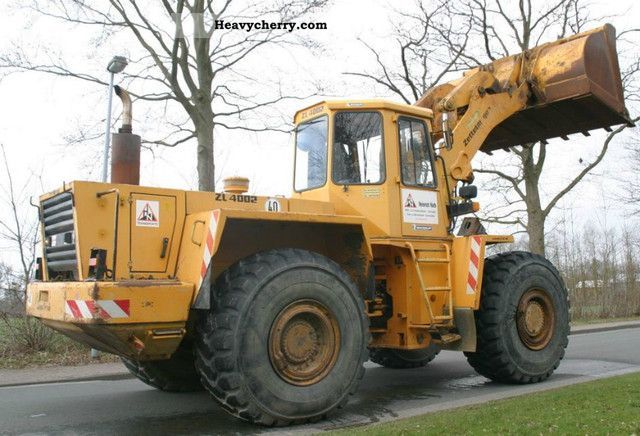

Zettelmeyer ZL4002
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.73 ft in (3270 mm) |
| Breakout Force | 50582.01 lb (225 kN) |
| Bucket Capacity - Heaped | 4.58 yd3 (3.5 m3) |
| Bucket Capacity - Struck | 3.93 yd3 (3 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
Dimensions
| Ground Clearance | 1.61 ft in (490 mm) |
| Length With Bucket On Ground | 27.43 ft in (8360 mm) |
| Height To Top Of Cab | 11.49 ft in (3500 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.44 ft in (4400 mm) |
| Reach At Max Lift And Dump | 3.48 ft in (1060 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | LT 10-C 250 |
| Net Power | 240 hp (179 kw) |
| Gross Power | 250 hp (186.5 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 743.5 lb ft (1008 Nm) |
| Displacement | 622.5 cu in (10.2 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 46958.5 lb (21300 kg) |
| Fuel Capacity | 95.2 gal (360 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Engine Oil Fluid Capacity | 7.1 gal (26.5 L) |
| Transmission Fluid Capacity | 7.4 gal (28 L) |
| Front Axle/Diff Fluid Capacity | 11.1 gal (42 L) |
| Rear Axle/Diff Fluid Capacity | 8.2 gal (31 L) |
| Static Tipping Weight | 37919.6 lb (17200 kg) |
| Turning Radius | 22.7 ft in (6910 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 26.5-25 16PR |
Transmission
| Transmission Type | full powershift countershaft |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 14.3 mph (23 km/h) |
Hydraulic System
| Relief Valve Setting | 3335.9 psi (23000 kPa) |
| Pump Flow Capacity | 78.8 gal/min (298 L/min) |
| Raise Time | 6.5 sec |
| Dump Time | 1.7 sec |
| Lower Time | 4.6 sec |
| Pump Type | tandem axial piston pump |
