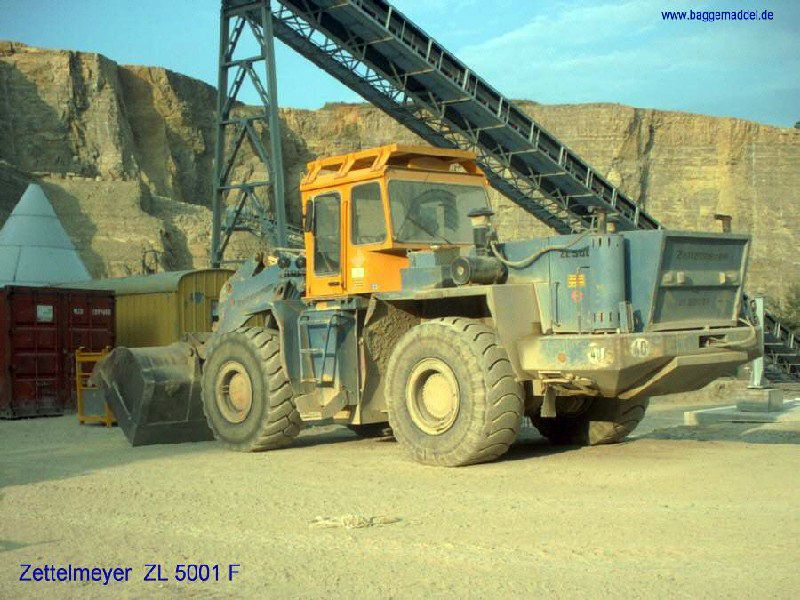

Zettelmeyer ZL5001F
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.73 ft in (3270 mm) |
| Breakout Force | 46085.83 lb (205 kN) |
| Bucket Capacity - Heaped | 7.85 yd3 (6 m3) |
| Bucket Capacity - Struck | 4.58 yd3 (3.5 m3) |
| Bucket Width | 9.85 ft in (3000 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Length With Bucket On Ground | 29.01 ft in (8840 mm) |
| Height To Top Of Cab | 11.62 ft in (3540 mm) |
| Wheelbase | 11.49 ft in (3500 mm) |
| Hinge Pin - Max Height | 14.64 ft in (4460 mm) |
| Reach At Max Lift And Dump | 3.55 ft in (1080 mm) |
Engine
| Number Of Cylinders | 10 |
| Engine Make | 2349 |
| Engine Model | F 10L 413F |
| Gross Power | 269 hp (200.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 748.7 lb ft (1015 Nm) |
| Displacement | 973.6 cu in (16 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 52249.6 lb (23700 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Hydraulic System Fluid Capacity | 105.7 gal (400 L) |
| Engine Oil Fluid Capacity | 7.4 gal (28 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 5.5 gal (20.5 L) |
| Rear Axle/Diff Fluid Capacity | 5.5 gal (20.5 L) |
| Static Tipping Weight | 40785.6 lb (18500 kg) |
| Turning Radius | 22.8 ft in (6920 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 16 degrees |
| Tire Size | 26.5R25 |
Transmission
| Transmission Type | full powershift planetary |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 38.6 mph (62 km/h) |
| Max Speed - Reverse | 38.6 mph (62 km/h) |
Hydraulic System
| Relief Valve Setting | 2610.7 psi (18000 kPa) |
| Pump Flow Capacity | 99.6 gal/min (377 L/min) |
| Raise Time | 6.8 sec |
| Dump Time | 1.7 sec |
| Lower Time | 4.6 sec |
| Pump Type | gear type tandem |
