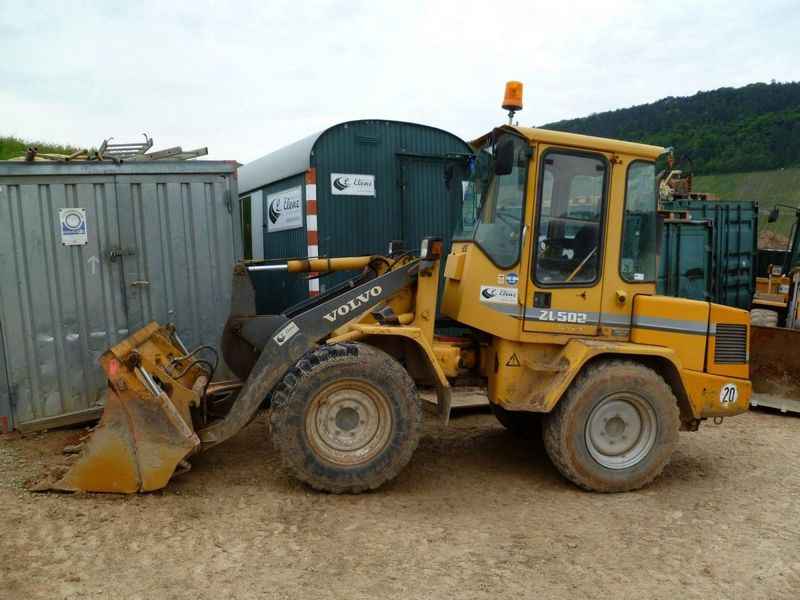

Zettelmeyer ZL502C
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.21 ft in (2500 mm) |
| Bucket Capacity - Heaped | 0.92 yd3 (0.7 m3) |
| Bucket Width | 5.75 ft in (1750 mm) |
| Breakout Force | 9037.32 lb (40.21 kN) |
Dimensions
| Ground Clearance | 1.42 ft in (430 mm) |
| Length With Bucket On Ground | 16.38 ft in (4990 mm) |
| Width Over Tires | 5.68 ft in (1730 mm) |
| Height To Top Of Cab | 8.49 ft in (2585 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Hinge Pin - Max Height | 10.14 ft in (3090 mm) |
| Reach At Max Lift And Dump | 2.7 ft in (820 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | KHD F4 L 1011 F |
| Net Power | 47 hp (35.1 kw) |
| Gross Power | 48 hp (35.8 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 95 lb ft (128.9 Nm) |
| Displacement | 167 cu in (2.8 L) |
| Torque Measured @ | 1800 rpm |
| Aspiration | natural |
Operational
| Operating Weight | 9700 lb (4399.9 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Engine Oil Fluid Capacity | 2.8 gal (10.5 L) |
| Front Axle/Diff Fluid Capacity | 2.7 gal (10 L) |
| Rear Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Static Tipping Weight | 7495.8 lb (3400 kg) |
| Turning Radius | 13.3 ft in (4050 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 12.5-18 |
Transmission
| Transmission Type | hydrostatic full power shift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3335 psi (22994 kPa) |
| Pump Flow Capacity | 11.9 gal/min (45 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1 sec |
| Lower Time | 3 sec |
| Pump Type | control valve 3-spool |
