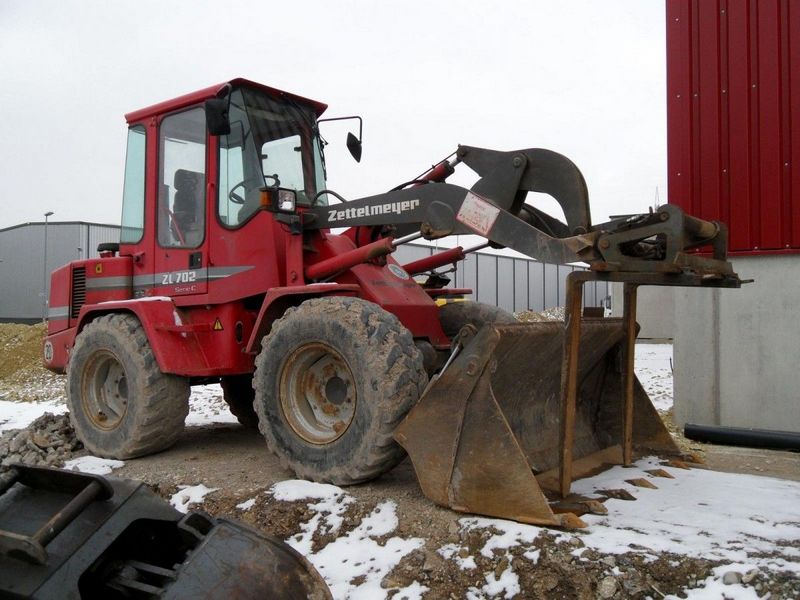

Zettelmeyer ZL702
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.17 ft in (2490 mm) |
| Bucket Capacity - Heaped | 1.18 yd3 (0.9 m3) |
| Bucket Width | 6.24 ft in (1900 mm) |
| Breakout Force | 9217.17 lb (41 kN) |
Dimensions
| Ground Clearance | 1.61 ft in (490 mm) |
| Length With Bucket On Ground | 16.47 ft in (5020 mm) |
| Width Over Tires | 6.22 ft in (1895 mm) |
| Height To Top Of Cab | 8.62 ft in (2625 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Hinge Pin - Max Height | 10.27 ft in (3130 mm) |
| Reach At Max Lift And Dump | 2.5 ft in (760 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | BF 4L 1011 |
| Net Power | 62.4 hp (46.5 kw) |
| Gross Power | 63.7 hp (47.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 158.6 lb ft (215 Nm) |
| Displacement | 166.6 cu in (2.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | turbo + oil/air cooled |
Operational
| Operating Weight | 11023.2 lb (5000 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Engine Oil Fluid Capacity | 2.8 gal (10.5 L) |
| Front Axle/Diff Fluid Capacity | 2.7 gal (10 L) |
| Rear Axle/Diff Fluid Capacity | 3 gal (11 L) |
| Static Tipping Weight | 8708.3 lb (3950 kg) |
| Turning Radius | 13.7 ft in (4150 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 405/70 R20 |
Transmission
| Transmission Type | hydrostatic full powershift |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3335.9 psi (23000 kPa) |
| Pump Flow Capacity | 13.3 gal/min (50 L/min) |
| Raise Time | 6 sec |
| Dump Time | 1 sec |
| Lower Time | 3 sec |
| Pump Type | gear type tandem |
