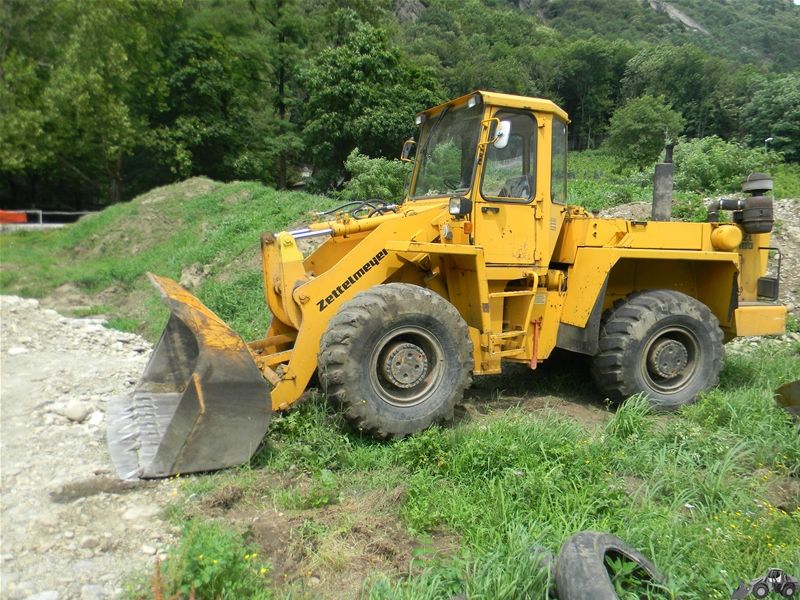

Zettelmeyer ZL1801
Browse All Zettelmeyer or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.59 ft in (2920 mm) |
| Breakout Force | 26302.65 lb (117 kN) |
| Bucket Capacity - Heaped | 1.97 yd3 (1.5 m3) |
| Bucket Capacity - Struck | 1.64 yd3 (1.25 m3) |
| Bucket Width | 8.21 ft in (2500 mm) |
Dimensions
| Ground Clearance | 1.45 ft in (440 mm) |
| Length With Bucket On Ground | 21.92 ft in (6680 mm) |
| Height To Top Of Cab | 10.27 ft in (3130 mm) |
| Wheelbase | 9.45 ft in (2880 mm) |
| Hinge Pin - Max Height | 12.24 ft in (3730 mm) |
| Reach At Max Lift And Dump | 2.6 ft in (790 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6BT 5.9 |
| Net Power | 126.1 hp (94 kw) |
| Gross Power | 134.2 hp (100 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 354.1 lb ft (480 Nm) |
| Displacement | 358.9 cu in (5.9 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 24912.3 lb (11300 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 45 gal (170 L) |
| Engine Oil Fluid Capacity | 4.3 gal (16 L) |
| Transmission Fluid Capacity | 7.4 gal (28 L) |
| Front Axle/Diff Fluid Capacity | 7.1 gal (26.5 L) |
| Rear Axle/Diff Fluid Capacity | 5.5 gal (20.5 L) |
| Static Tipping Weight | 20062.1 lb (9100 kg) |
| Turning Radius | 18.9 ft in (5750 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20-24 12PR |
Transmission
| Transmission Type | full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic System
| Relief Valve Setting | 3335.9 psi (23000 kPa) |
| Pump Flow Capacity | 41.5 gal/min (157 L/min) |
| Raise Time | 6 sec |
| Dump Time | 2.4 sec |
| Lower Time | 3 sec |
| Pump Type | axial piston |
