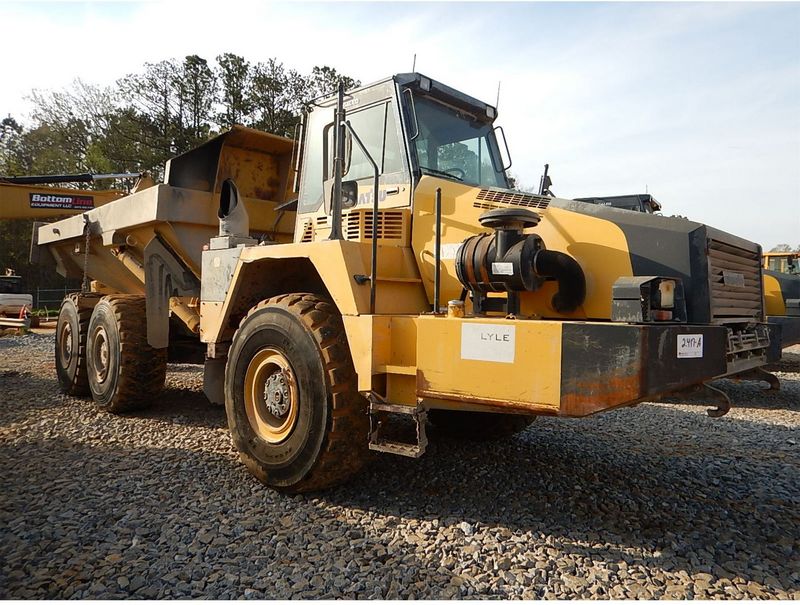

Komatsu HM350-2
Browse All Komatsu or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 36.58 ft in (11145 mm) |
| Overall Width | 10.67 ft in (3250 mm) |
| Overall Height | 11.83 ft in (3600 mm) |
| Wheelbase | 17.25 ft in (5275 mm) |
| Ground Clearance | 1.92 ft in (585 mm) |
| Dump Height | 23.08 ft in (7035 mm) |
| Dump Ground Clearance | 2.33 ft in (720 mm) |
Dump
| Dump Angle | 70 degrees |
| Capacity - Heaped | 25.9 yd3 (19.8 m3) |
| Capacity - Struck | 19.11 yd3 (14.6 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SAA6D140E-5 |
| Gross Power | 408 hp (304 kw) |
| Net Power | 394 hp (294 kw) |
| Aspiration | Turbo-charged |
| Displacement | 930 cu in (15.3 L) |
Operational
| Fuel Capacity | 130.3 gal (493 L) |
| Hydraulic System Fluid Capacity | 47.6 gal (180 L) |
| Engine Oil Capacity | 13.2 gal (50 L) |
Transmission
| Transmission Type | full-automatic, counter-shaft type |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed | 35.5 mph (57.1 km/h) |
Weights
| Center Axle - Empty | 14796 % |
| Front Axle - Empty | 39319 lb (- -) |
| Rear Axle - Empty | 14385 lb (- -) |
| Front Axle - Loaded | 44488 % |
| Center Axle - Loaded | 47846 % |
| Rear Axle - Loaded | 47566 lb (- -) |
| Total Empty | 68500 lb (31060 kg) |
| Total Loaded | 139900 lb (63440 kg) |
