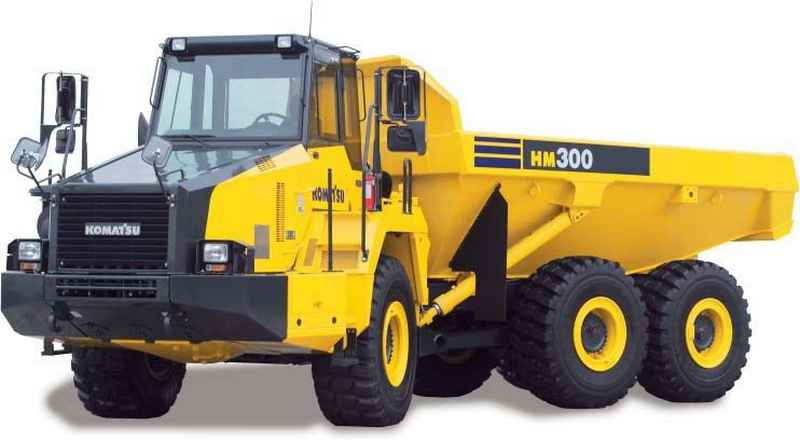

Komatsu HM300-5
Browse All Komatsu or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 33.72 ft in (10275 mm) |
| Overall Width | 9.52 ft in (2900 mm) |
| Overall Height | 11.88 ft in (3620 mm) |
| Wheelbase | 13.46 ft in (4100 mm) |
| Ground Clearance | 1.89 ft in (575 mm) |
| Dump Height | 21.13 ft in (6440 mm) |
| Dump Ground Clearance | 2 ft in (607 mm) |
Dump
| Rated Payload | 56000.06 lb (25401.2 kg) |
| Capacity - Struck | 17.53 yd3 (13.4 m3) |
| Capacity - Heaped | 22.37 yd3 (17.11 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Komatsu |
| Engine Model | SAA6D125E-7 |
| Gross Power | 332.6 hp (248 kw) |
| Net Power | 324.6 hp (242 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1.3 lb ft (1.7 Nm) |
| Displacement | 673.8 cu in (11.1 L) |
| Bore | 5 in (125 mm) |
| Stroke | 6 in (150 mm) |
Operational
| Def Tank Capacity | 18.9 gal (71.5 L) |
| Fuel Capacity | 102.5 gal (388 L) |
| Hydraulic System Fluid Capacity | 27.3 gal (103 L) |
| Engine Oil Capacity | 9.3 gal (35 L) |
| Transmission Fluid Capacity | 25.9 gal (98 L) |
| Tire Size | 23.5 R25 |
Transmission
| Transmission Type | Full-automatic, Counter-shaft type |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed | 36.5 mph (58.6 km/h) |
Weights
| Front Axle - Empty | 59 % |
| Center Axle - Empty | 22.5 % |
| Rear Axle - Empty | 18.5 % |
| Front Axle - Loaded | 31 % |
| Center Axle - Loaded | 36 % |
| Rear Axle - Loaded | 33 % |
| Total Empty | 56 lb (25.4 kg) |
| Total Loaded | 117.9 lb (53.5 kg) |
Hydraulic System
| Relief Valve Pressure | 4264.2 psi (29400 kPa) |
| Hoist Cylinder | Twin, 1-stage type |
| Hoist Time | 10.5 |
