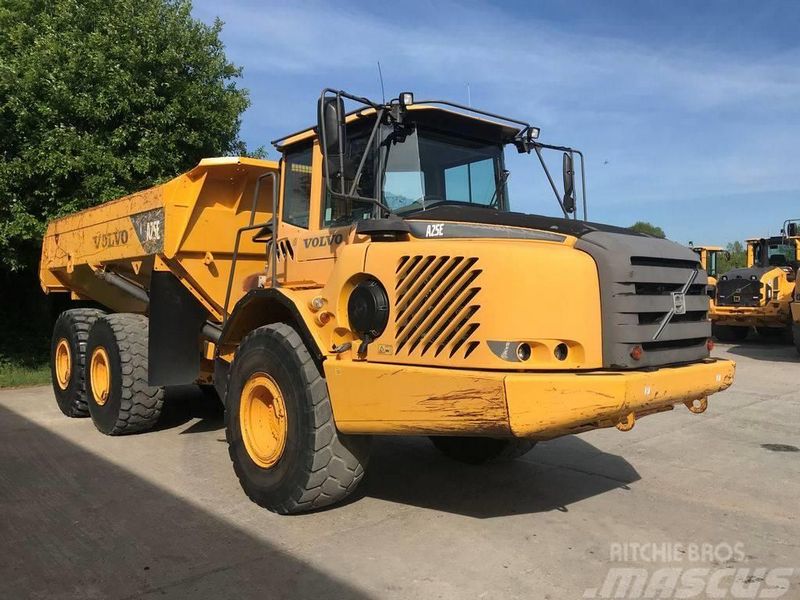

Volvo A25E
Browse All Volvo or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 33.53 ft in (10220 mm) |
| Overall Width | 8.85 ft in (2700 mm) |
| Overall Height | 10.68 ft in (3257 mm) |
| Wheelbase | 13.69 ft in (4175 mm) |
| Ground Clearance | 2.16 ft in (659 mm) |
| Dump Height | 21.51 ft in (6559 mm) |
| Dump Ground Clearance | 2.23 ft in (677 mm) |
Dump
| Dump Angle | 72 degrees |
| Lower Time | 9 sec |
| Rated Payload | 52910 lb (24000 kg) |
| Capacity - Struck | 15.3 yd3 (11.7 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 19.61 yd3 (15 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D9B ABE3 |
| Gross Power | 300 hp (224 kw) |
| Net Power | 299 hp (223 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1254 lb ft (1700 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbocharged and Intercooled |
| Displacement | 574 cu in (9.4 L) |
Operational
| Fuel Capacity | 106 gal (400 L) |
| Hydraulic System Fluid Capacity | 46 gal (175 L) |
| Cooling System Fluid Capacity | 30.4 gal (115 L) |
| Engine Oil Capacity | 10.6 gal (40 L) |
| Transmission Fluid Capacity | 11 gal (41 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 23,5R25 |
Transmission
| Transmission Type | Volvo PowerTronic planetary transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed | 32.9 mph (53 km/h) |
Weights
| Front Axle - Empty | 26808 lb (12160 kg) |
| Rear Axle - Empty | 20723 lb (9400 kg) |
| Front Axle - Loaded | 31173 % |
| Rear Axle - Loaded | 69269 lb (31420 kg) |
| Total Empty | 47531 lb (21560 kg) |
| Total Loaded | 100442 lb (45560 kg) |
