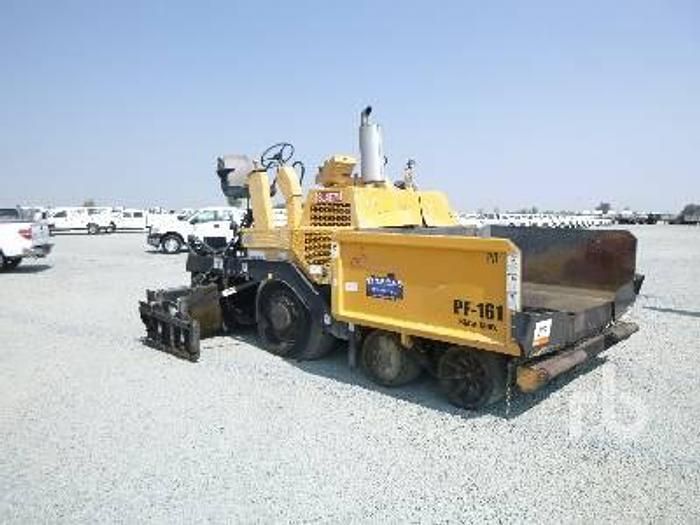

Ingersoll Rand PF161
Browse All Ingersoll Rand or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 17.2 ft in (5240 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 10.01 ft in (3050 mm) |
| Wheelbase | 6.25 ft in (1905 mm) |
| Width W/ Hopper Open | 10.57 ft in (3220 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | Elite 4BTA 3.9 |
| Net Power | 107 hp (79.8 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight W/O Screed | 20350 lb (9230.7 kg) |
| Operating Weight W/ Screed | 23000 lb (10432.7 kg) |
| Fuel Capacity | 38.1 gal (144 L) |
| Hydraulic System Fluid Capacity | 50 gal (189 L) |
| Cooling System Fluid Capacity | 6.5 gal (24.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 105 amps |
Hopper/Paver
| Hopper Capacity | 6.7 lb (5.1 kg) |
| Paving Width - Std | 8.1 ft in (2440 mm) |
| Paving Width - Max | 19.1 ft in (5800 mm) |
| Paving Thickness - Max | 8 in (203.2 mm) |
| Paving Speed - Max | 196.2 ft/min (59.8 m/min) |
| Travel Speed - Max | 9.9 mph (15.9 km/h) |
| Auger Diameter | 16 in (406.4 mm) |
