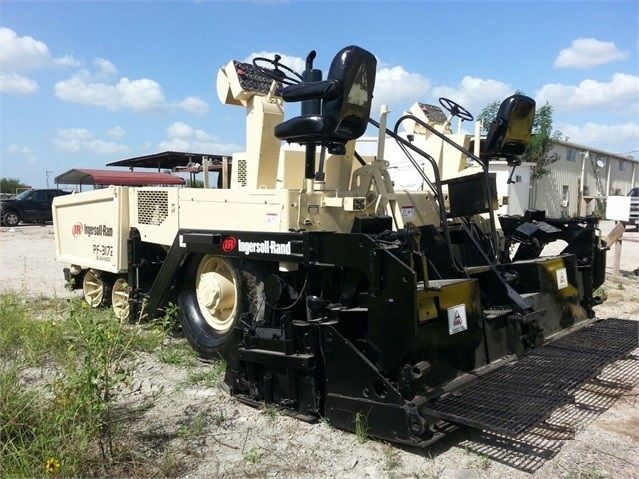

Ingersoll Rand PF3172
Browse All Ingersoll Rand or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 18.77 ft in (5720 mm) |
| Transport Width | 10.01 ft in (3050 mm) |
| Transport Height | 10.34 ft in (3150 mm) |
| Wheelbase | 7.5 ft in (2286 mm) |
| Width W/ Hopper Open | 10.34 ft in (3150 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB5.9-30-T Tier 2 |
| Net Power | 158 hp (117.9 kw) |
| Power Measured @ | 2100 rpm |
Operational
| Operating Weight W/O Screed | 25370 lb (11507.7 kg) |
| Operating Weight W/ Screed | 29870 lb (13548.9 kg) |
| Fuel Capacity | 53.9 gal (204 L) |
| Hydraulic System Fluid Capacity | 53.9 gal (204 L) |
| Cooling System Fluid Capacity | 6.4 gal (24.1 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
Hopper/Paver
| Hopper Capacity | 6.8 lb (5.2 kg) |
| Paving Width - Max | 21 ft in (6400 mm) |
| Paving Thickness - Max | 12 in (304.8 mm) |
| Paving Speed - Max | 227.1 ft/min (69.2 m/min) |
| Travel Speed - Max | 9.9 mph (15.8 km/h) |
| Auger Diameter | 16 in (406.4 mm) |
