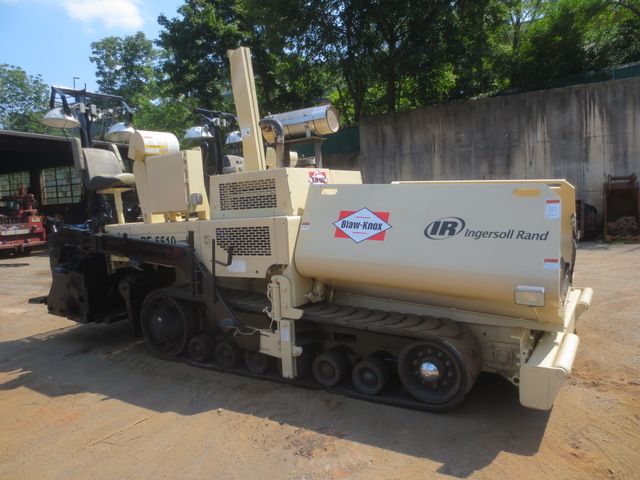

Ingersoll Rand PF5510
Browse All Ingersoll Rand or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 19.49 ft in (5940 mm) |
| Transport Width | 10.01 ft in (3050 mm) |
| Transport Height | 9.59 ft in (2920 mm) |
| Length Of Track On Ground | 9.76 ft in (2972 mm) |
| Track Width | 19 in (482.6 mm) |
| Width W/ Hopper Open | 10.34 ft in (3150 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 5.9-30TAA |
| Net Power | 188 hp (140.2 kw) |
Operational
| Operating Weight W/O Screed | 32450 lb (14719.1 kg) |
| Operating Weight W/ Screed | 36950 lb (16760.3 kg) |
| Fuel Capacity | 53.9 gal (204 L) |
| Hydraulic System Fluid Capacity | 53.9 gal (204 L) |
| Cooling System Fluid Capacity | 7.1 gal (26.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
Hopper/Paver
| Hopper Capacity | 8.1 lb (6.2 kg) |
| Paving Width - Std | 10.1 ft in (3050 mm) |
| Paving Width - Max | 30 ft in (9140 mm) |
| Paving Thickness - Max | 12 in (304.8 mm) |
| Paving Speed - Max | 230 ft/min (70.1 m/min) |
| Travel Speed - Max | 10.1 mph (16.1 km/h) |
| Auger Diameter | 16 in (406.4 mm) |
