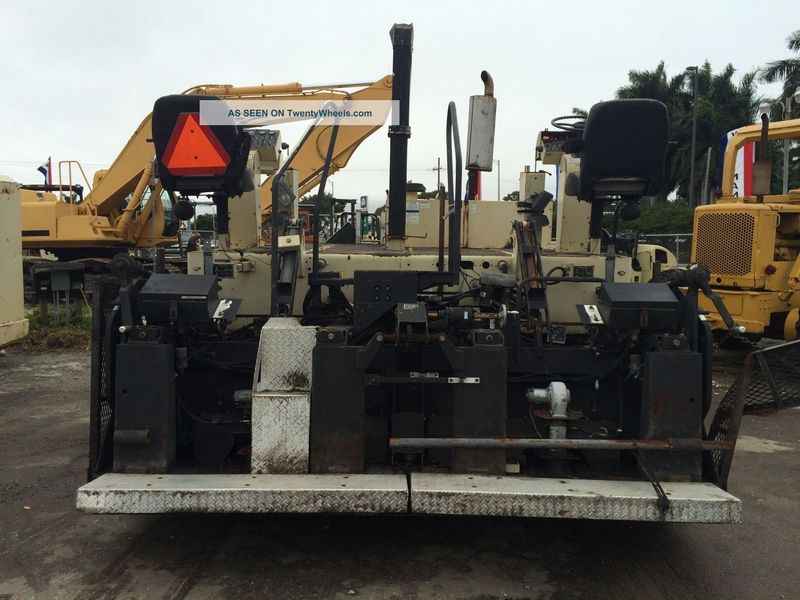

Ingersoll Rand PF6160
Browse All Ingersoll Rand or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 17.17 ft in (5232 mm) |
| Transport Width | 9.84 ft in (2997 mm) |
| Transport Height | 11.67 ft in (3556 mm) |
| Wheelbase | 8.59 ft in (2616 mm) |
| Tire Size | 18x25 |
| Width W/ Hopper Open | 10.76 ft in (3277 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 6.7 tier 3 |
| Net Power | 205 hp (152.9 kw) |
| Power Measured @ | 1800 rpm |
Operational
| Operating Weight W/O Screed | 36122 lb (16384.7 kg) |
| Operating Weight W/ Screed | 40352 lb (18303.4 kg) |
| Fuel Capacity | 80.1 gal (303 L) |
| Hydraulic System Fluid Capacity | 62.6 gal (236.6 L) |
Hopper/Paver
| Hopper Capacity | 8.6 lb (6.6 kg) |
| Paving Width - Std | 10.1 ft in (3050 mm) |
| Paving Width - Max | 26 ft in (7920 mm) |
| Paving Thickness - Max | 12 in (304.8 mm) |
| Paving Speed - Max | 297 ft/min (90.5 m/min) |
| Travel Speed - Max | 12 mph (19.3 km/h) |
| Auger Diameter | 17.1 in (432 mm) |
