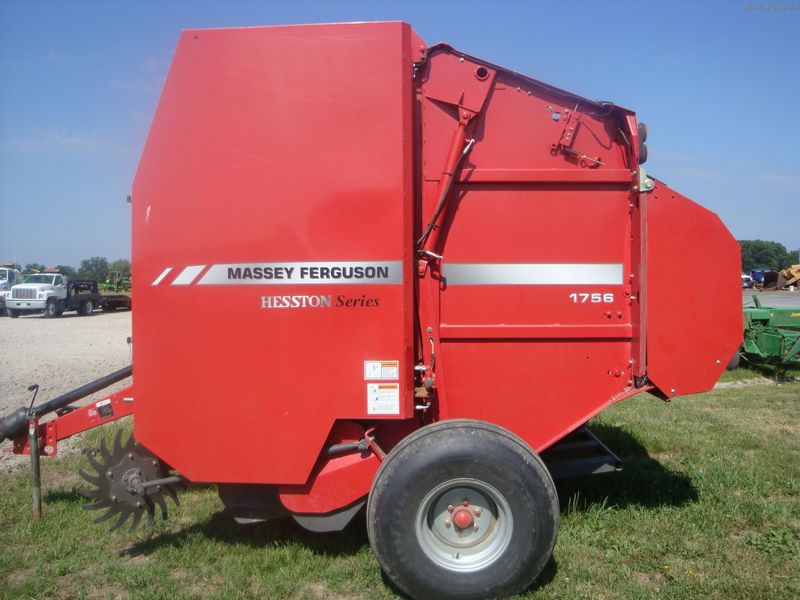

Massey Ferguson 1756
Browse All Massey Ferguson or Baler Models
Contents:
Baler Pickup
| Overall Width | 5.15 ft in (1.57 m) |
| Number Of Tines | 96 |
| Tine To Tine Width | 4.99 ft in (1.52 m) |
| Number Of Bars | 4 |
Dimensions
| Overall Length | 13.51 ft in (4115 mm) |
| Overall Width | 9.34 ft in (2845 mm) |
| Overall Height | 9.85 ft in (3000 mm) |
| Tractor Pto Power Required | 70 hp (52.2 kw) |
| Weight | 5380 lb (2440.33 kg) |
Bale Size
| Bale Width | 5.2 ft in (1562 mm) |
| Bale Diameter - Min | 2.5 ft in (762 mm) |
| Bale Diameter - Max | 6.1 ft in (1829 mm) |
| Bale Weight - Min | 2100 lb (952.6 kg) |
Bale Chamber
| Number Of Belts | 8 Laced, WedgeGrip Patter |
| Belt Width | 7 in (17.8 cm) |
Wrapping System
| Twine Type | AutoTie - Electric Actuated |
| Twine Ball Capacity | 4 |
