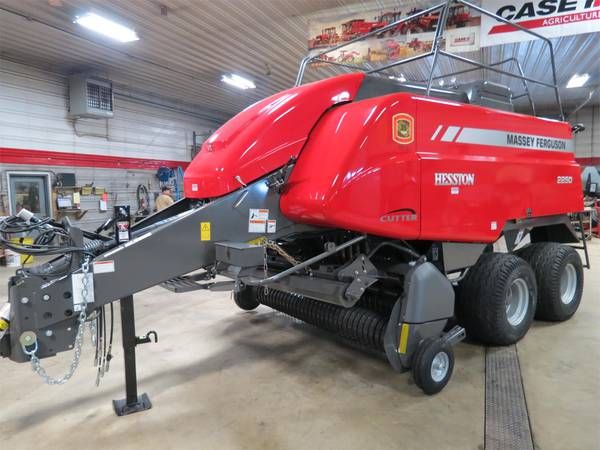

Massey Ferguson 2250PC
Browse All Massey Ferguson or Baler Models
Contents:
Baler Pickup
| Overall Width | 9822.84 ft in (2994 m) |
| Number Of Tines | 64 |
| Inside Width | 85.04 in (2160 mm) |
| Tine Spacing | 2.6 in (66 mm) |
Dimensions
| Overall Length | 25.33 ft in (7720 mm) |
| Overall Height - To Top Of Folded Hand Rails | 113 in (2870 mm) |
| Overall Width W/Single Axle | 102.25 in (2597 mm) |
| Overall Width W/Tandem Axles | 108.19 in (2748 mm) |
| Overall Height - To Top Of Raised Hand Rails | 128.75 in (3270 mm) |
Bale Size
| Baler Weight W/Single Axle | 15505.2 lb (7033 kg) |
| Baler Weight W/Tandem Axle, Packer Version | 16825.7 lb (7632 kg) |
Engine
| Horsepower - Gross | 150 hp (111.9 kw) |
| Electrical System | 12 volt DC |
| Pto Speed | 1000 rpm |
Bale Size
| Bale Height | 2.7 ft in (800 mm) |
| Bale Width | 2.9 ft in (875 mm) |
| Bale Length - Max | 9 ft in (2743 mm) |
Engine
| Weight | 14215.5 lb (6448 kg) |
Driveline
| Gearbox | Enclosed double reduction |
| Driveline Type | Type 2 or Type 3 PTO |
| Protection | Overrunning , slip clutch and shear bolt |
Feeding Chamber
| Stuffer Protection | Shear bolt on main drive sprocket |
| Stuffer Fingers | 6 |
| Packer Protection | Slip Clutch |
Tires
| Single Axle | 600-50 x 22.5 , 12 ply |
| Tandem Axle | 500-50 x 17 , 16 ply |
| Tandem Axle Upgrade | 620/40R x 22.5 tires |
Feeding Chamber
| Packer Type | RC 100 Roller Chains |
Plunger
| Stroke Length | 29.2 in (740 mm) |
| Plunger Speed (Strokes/Min) | 47 |
Wrapping System
| Knife Distance - Min | 4.6 in (116 mm) |
| Knife Removal | Slide out knife bed, top removal |
| Knife Activation, In-Out | Hydraulics |
| Knotters | Four double knot |
| Cutter Knives | 6 |
| Twine Type | High quality split film polypropylene or sisal twine |
| Twine Ball Capacity | 30 |
