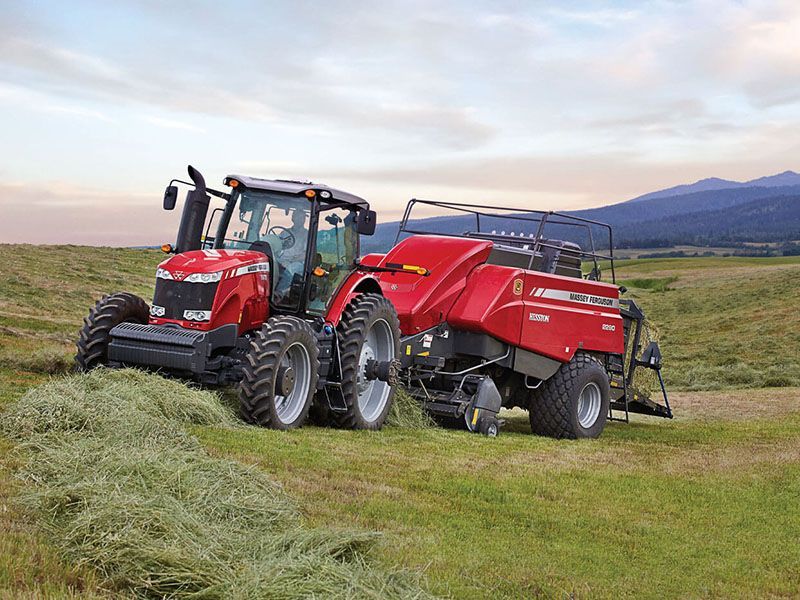

Massey Ferguson 2270
Browse All Massey Ferguson or Baler Models
Contents:
Baler Pickup
| Overall Width | 9822.84 ft in (2994 m) |
| Number Of Tines | 64 |
| Inside Width | 85.04 in (2160 mm) |
| Tine Spacing | 2.6 in (66 mm) |
Dimensions
| Overall Length | 25.43 ft in (7751 mm) |
| Overall Height - To Top Of Folded Hand Rails | 113 in (2870 mm) |
| Overall Width W/Single Axle | 118.12 in (3000 mm) |
| Overall Width W/Tandem Axles | 118.12 in (3000 mm) |
| Overall Height - To Top Of Raised Hand Rails | 128.75 in (3270 mm) |
Bale Size
| Baler Weight W/Single Axle | 19700.6 lb (8936 kg) |
| Baler Weight W/Single Axle, Cutter | 24021.6 lb (10896 kg) |
| Baler Weight W/Tandem Axle, Packer Version | 21360.6 lb (9689 kg) |
| Baler Weight W/Tandem Axle, Cutter Version | 25681.7 lb (11649 kg) |
Engine
| Horsepower - Gross | 130 hp (97 kw) |
| Electrical System | 12 volt DC |
| Pto Speed | 1000 rpm |
Bale Size
| Bale Height | 2.9 ft in (875 mm) |
| Bale Width | 4 ft in (1199 mm) |
| Bale Length - Max | 9 ft in (2743 mm) |
Engine
| Weight | 19215.5 lb (8716 kg) |
Driveline
| Gearbox | Enclosed double reduction |
| Driveline Type | Type 2 or Type 3 PTO |
| Protection | Overrunning , slip clutch and shear bolt |
Feeding Chamber
| Stuffer Protection | Shear bolt on main drive sprocket |
| Stuffer Fingers | 6 |
| Packer Protection | Slip Clutch |
Tires
| Single Axle | 700/50 - 22.5 , 16 ply |
| Tandem Axle | 500/45 x 22.5 , 12 ply |
| Tandem Axle Upgrade | 620/40R x 22.5 tires |
Feeding Chamber
| Packer Type | RC 100 Roller Chains |
Plunger
| Stroke Length | 29.2 in (740 mm) |
| Plunger Speed (Strokes/Min) | 47 |
Wrapping System
| Knife Distance - Min | 1.5 in (38 mm) |
| Knife Removal | Slide out knife bed, top removal |
| Knife Activation, In-Out | Hydraulics |
| Knotters | Six double knot |
| Cutter Knives | 26 |
| Twine Type | High quality split film polypropylene or sisal twine |
| Twine Ball Capacity | 30 |
