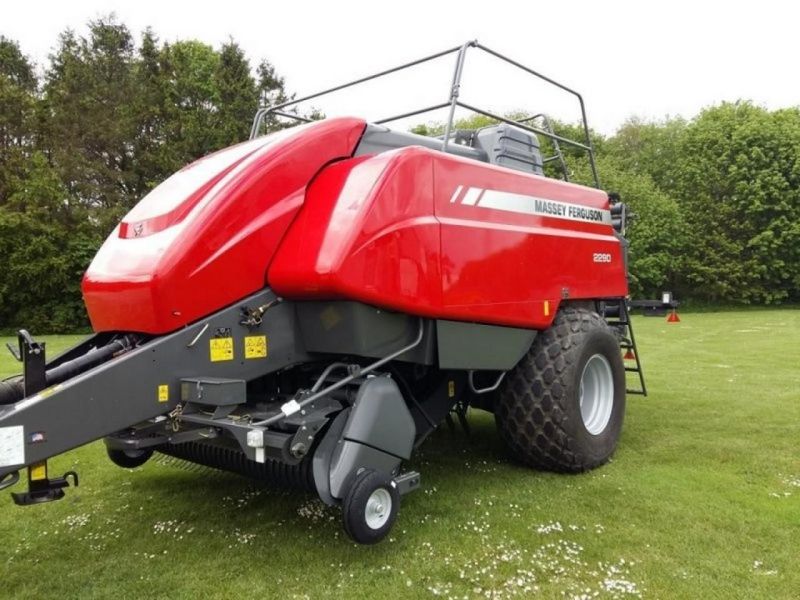

Massey Ferguson 2290
Browse All Massey Ferguson or Baler Models
Contents:
Baler Pickup
| Overall Width | 9822.84 ft in (2994 m) |
| Number Of Tines | 64 |
| Inside Width | 85.04 in (2160 mm) |
| Tine Spacing | 2.6 in (66 mm) |
Dimensions
| Overall Length | 27.04 ft in (8241 mm) |
| Overall Height - To Top Of Folded Hand Rails | 130.6 in (3317 mm) |
| Overall Width W/Single Axle | 129.61 in (3292 mm) |
| Overall Width W/Tandem Axles | 118.12 in (3000 mm) |
| Overall Height - To Top Of Raised Hand Rails | 140.79 in (3576 mm) |
Bale Size
| Baler Weight W/Single Axle | 23197.1 lb (10522 kg) |
| Baler Weight W/Tandem Axle, Packer Version | 24321.4 lb (11032 kg) |
Engine
| Horsepower - Gross | 150 hp (111.9 kw) |
| Electrical System | 12 volt DC |
| Pto Speed | 1000 rpm |
Bale Size
| Bale Height | 4.2 ft in (1275 mm) |
| Bale Width | 4 ft in (1199 mm) |
| Bale Length - Max | 9 ft in (2743 mm) |
Engine
| Weight | 21537 lb (9769 kg) |
Driveline
| Gearbox | Enclosed double reduction |
| Driveline Type | Type 2 or Type 3 PTO |
| Protection | Overrunning , slip clutch and shear bolt |
Feeding Chamber
| Stuffer Protection | Shear bolt on main drive sprocket |
| Stuffer Fingers | 6 |
| Packer Protection | Slip Clutch |
Tires
| Single Axle | 28L x 26, 16 ply |
| Tandem Axle | 500-50 x 17 , 16 ply |
| Tandem Axle Upgrade | 620/40R x 22.5 tires |
Feeding Chamber
| Packer Type | RC 100 Roller Chains |
Plunger
| Stroke Length | 32.3 in (820 mm) |
| Plunger Speed (Strokes/Min) | 33 |
Wrapping System
| Knotters | Six double knot |
| Twine Type | High quality split film polypropylene or sisal twine |
| Twine Ball Capacity | 30 |
