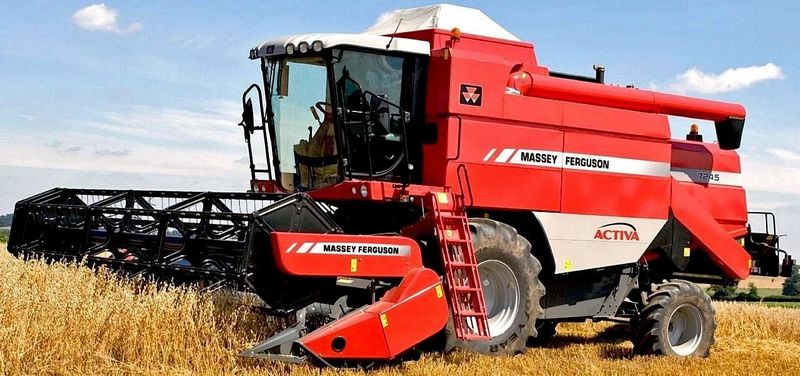

Massey Ferguson ACTIVA 7245
Browse All Massey Ferguson or Combine Models
Contents:
Dimensions
| Overall Length | 27.47 ft in (8370 mm) |
| Width Over Tires | 10.77 ft in (3280 mm) |
Engine
| Engine Make | 2388 |
| Engine Model | NEF |
| Power | 255 hp (190.2 kw) |
| Displacement | 354 cu in (5.8 L) |
Operational
| Operating Weight W/O Attachment | 30093.1 lb (13650 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Transmission Type | hydrostatic |
| Number Of Gears | 3 |
Threshing
| Rotor Diameter | 23.7 in (600 mm) |
| Rotor Length | 52.8 in (1340 mm) |
| Rotor Speed - Low | 380 rpm |
| Rotor Speed - High | 1210 rpm |
| Concave Area | 1286.6 in2 (0.9 m2) |
Separating
| Separator Type | 5 straw walkers |
| Separating Area | 8881.6 in2 (5.8 m2) |
Cleaning System
| Total Cleaning Area | 7238.6 in2 (4.7 m2) |
| Cleaning Fan Speed - Low | 350 rpm |
| Cleaning Fan Speed - High | 1050 rpm |
Grain Handling
| Grain Tank Capacity | 198.7 bu (7000 L) |
| Unloading Auger Length | 13.2 ft in (4 m) |
| Unloading Speed | 2.5 bu/sec (85 L/sec) |
| Unloading Discharge Height | 13.9 ft in (4.3 m) |
