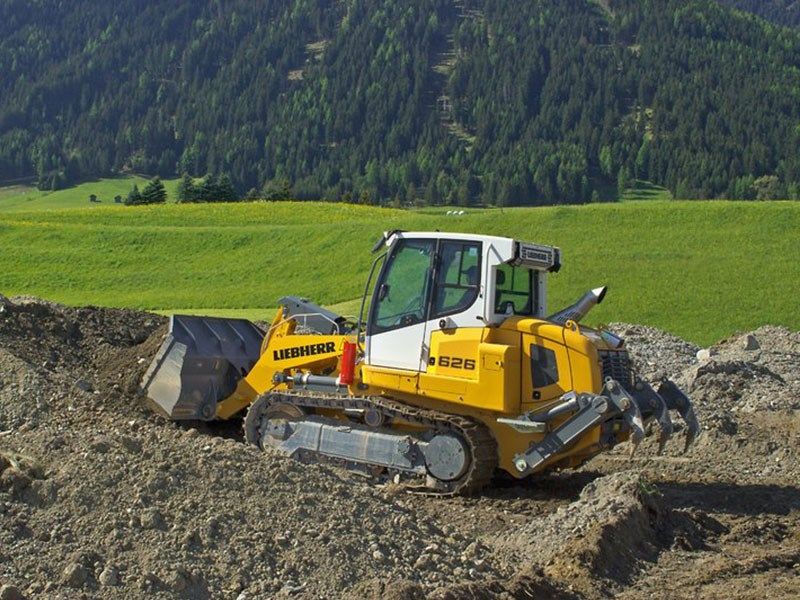

Liebherr LR626 LITRONIC
Browse All Liebherr or Crawler Loader Models
Contents:
Dimensions
| Ground Clearance | 1.38 ft in (420 mm) |
| Track Gauge | 5.71 ft in (1740 mm) |
| Length To Front Of Track | 15.22 ft in (4638 mm) |
| Track Shoe Width | 7.55 ft in (2300 mm) |
| Height | Exhaust pipe - 2688 mm, 8.10 ft in |
| Height Over Cab | 10334.65 ft in (3150 m) |
Undercarriage
| Number Of Track Rollers Per Side | 6 |
| Track Shoe Width | 20 in (508 mm) |
| Number Of Carrier Rollers Per Side | 1 |
Electrical System
| Alternator | 140 A |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 180 Ah / 12 V |
Engine
| Starter | 7 hp (5.3 kw) |
| Emission Tier Level | EPA/CARB Tier 4f |
| Number Of Cylinders | 4 |
| Engine Model | D 924-A7-04 |
| Net Power | 140.9 hp (105 kw) |
| Gross Power | 161 hp (120 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 274.7 cu in (4.5 L) |
| Bore | 4.1 in (104 mm) |
| Stroke | 5.2 in (132 mm) |
Capacities
| Engine Oil With Filter | 5.1 gal (19 L) |
| Fuel Tank | 84.6 gal (320 L) |
| Hydraulic Tank | 23.8 gal (90 L) |
| Diesel Exhaust Fluid (Def) Tank | 13 gal (49 L) |
| Cooling System | 8 gal (30 L) |
| Final Drive | 4 gal (15 L) |
Hydraulic
| Pressure | 3770 psi (25993.3 kPa) |
| Pump Type | Variable displacement pump |
| Pump Flow Capacity | 41 gal/min (155 L/min) |
