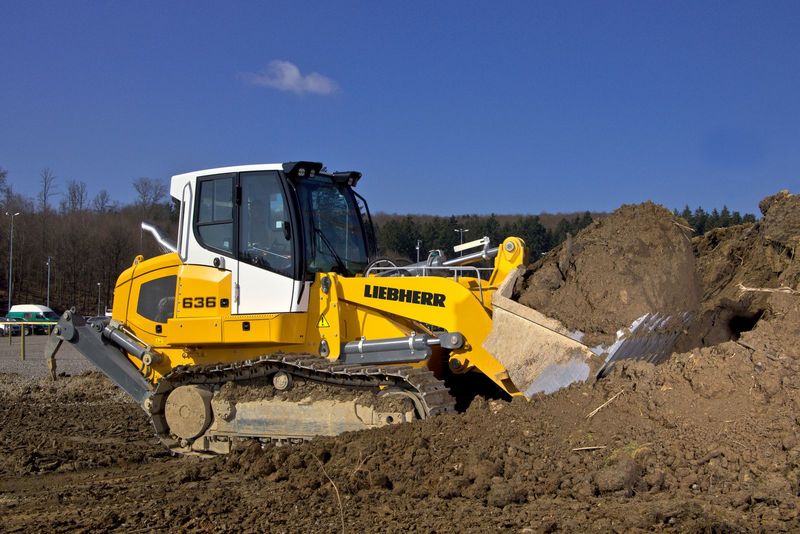

Liebherr LR636 LITRONIC
Browse All Liebherr or Crawler Loader Models
Contents:
Dimensions
| Ground Clearance | 1.59 ft in (483 mm) |
| Track Gauge | 5.12 ft in (1557.53 mm) |
| Length To Front Of Track | 16.21 ft in (4940 mm) |
| Track Shoe Width | 8.37 ft in (2550 mm) |
| Height | Exhaust pipe - 2866 mm , 9.5 ft in |
| Height Over Cab | 10.11 ft in (3.09 m) |
Undercarriage
| Number Of Track Rollers Per Side | 6 |
| Track Shoe Width | 22.05 in (560 mm) |
| Number Of Carrier Rollers Per Side | 1 |
Electrical System
| Alternator | 140 A |
| Voltage | 24 V V (deletedelete) |
| Batteries | 2 x 180 Ah / 12 V |
Engine
| Starter | 11 hp (8.3 kw) |
| Emission Tier Level | EPA/CARB Tier 4f |
| Number Of Cylinders | 4 |
| Engine Model | D 934 A7 |
| Net Power | 181.1 hp (135 kw) |
| Gross Power | 214.6 hp (160 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 427.2 cu in (7 L) |
| Bore | 4.9 in (122 mm) |
| Stroke | 6 in (150 mm) |
Capacities
| Engine Oil With Filter | 7.7 gal (29 L) |
| Fuel Tank | 105.7 gal (400 L) |
| Hydraulic Tank | 22.8 gal (86 L) |
| Diesel Exhaust Fluid (Def) Tank | 13 gal (49 L) |
| Cooling System | 11.1 gal (42 L) |
| Final Drive | 5.3 gal (20 L) |
Hydraulic
| Pressure | 3770 psi (25993.3 kPa) |
| Pump Type | Variable displacement pump |
| Pump Flow Capacity | 55.3 gal/min (209 L/min) |
