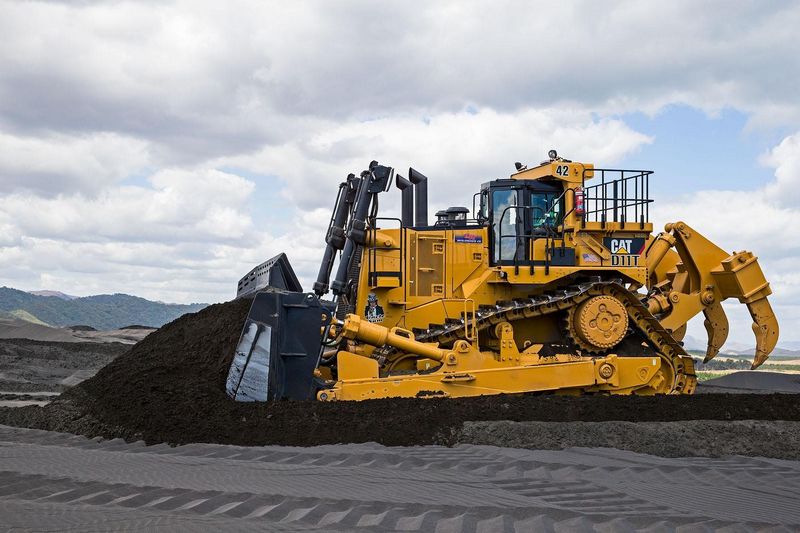

Caterpillar D11T
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 34.9 ft in (10637.52 mm) |
| Width Over Tracks | 11.84 ft in (3606 mm) |
| Height To Top Of Cab | 13.4 ft in (4078 mm) |
| Length Of Track On Ground | 12.67 ft in (3855 mm) |
| Ground Clearance | 2.22 ft in (674.5 mm) |
| Length W/O Blade | 19.75 ft in (6027 mm) |
Undercarriage
| Track Gauge | 9.51 ft in (2896 mm) |
| Standard Shoe Size | 27.96 in (710 mm) |
| Number Of Shoes Per Side | 41 |
| Ground Pressure | 20.03 psi (138.11 kPa) |
| Ground Contact Area | 9781 in2 (6.3 m2) |
| Number Of Track Rollers Per Side | 8 |
| Track Pitch | 12.5 in (318 mm) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2236 |
| Engine Model | 3508B |
| Gross Power | 935 hp (698 kw) |
| Net Power | 850 hp (634 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1958.9 cu in (32.1 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 230581.5 lb (104590 kg) |
| Fuel Capacity | 425.1 gal (1609 L) |
| Cooling System Fluid Capacity | 63.1 gal (238.8 L) |
| Engine Oil Capacity | 28.1 gal (106 L) |
| Hydraulic Fluid Capacity | 64.2 gal (243 L) |
| Powertrain Fluid Capacity | 91 gal (344 L) |
| Final Drives Fluid Capacity | 8 gal (30 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
Transmission
| Transmission Type | Power Shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.3 mph (11.8 km/h) |
| Max Speed - Reverse | 8.7 mph (14 km/h) |
Hydraulic System
| Pump Type | Gear driven |
| Relief Valve Pressure | 3500 psi (24135 kPa) |
| Pump Flow Capacity | 66 gal/min (250 L/min) |
Standard Blade
| Width | 18.4 ft in (5600 mm) |
| Height | 109 in (2773 mm) |
| Capacity | 35.5 yd3 (27.2 m3) |
| Cutting Depth | 30.2 in (766 mm) |
