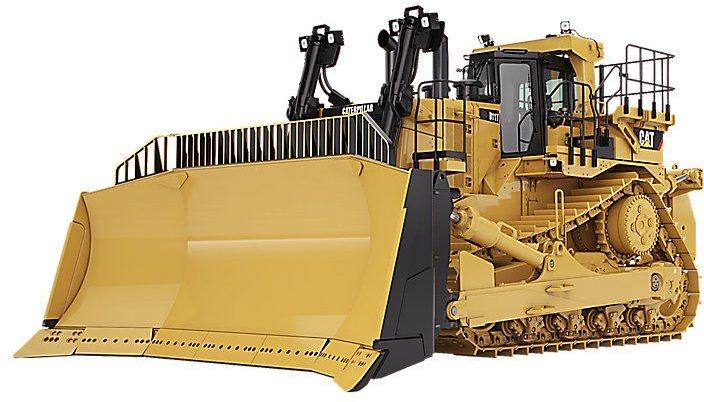

Caterpillar D11T CD
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 35.83 ft in (10918.2 mm) |
| Width Over Tracks | 12.49 ft in (3806 mm) |
| Height To Top Of Cab | 15.33 ft in (4667 mm) |
| Length Of Track On Ground | 14.59 ft in (4444 mm) |
| Ground Clearance | 2.05 ft in (623 mm) |
| Length W/O Blade | 19.75 ft in (6027 mm) |
Undercarriage
| Track Gauge | 9.51 ft in (2896 mm) |
| Standard Shoe Size | 35.83 in (910 mm) |
| Number Of Shoes Per Side | 41 |
| Ground Contact Area | 12581 in2 (8.1 m2) |
| Track Pitch | 12.5 in (318 mm) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2236 |
| Engine Model | C32 ACERT |
| Gross Power | 935 hp (698 kw) |
| Net Power | 850 hp (634 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 1959 cu in (32.1 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 248600 lb (113000 kg) |
| Fuel Capacity | 426 gal (161363 L) |
| Cooling System Fluid Capacity | 238.8 gal (28 L) |
| Engine Oil Capacity | 106 gal (401.3 L) |
| Hydraulic Fluid Capacity | 64.2 gal (243 L) |
| Powertrain Fluid Capacity | 91 gal (344 L) |
| Final Drives Fluid Capacity | 8 gal (90 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.3 mph (11.8 km/h) |
| Max Speed - Reverse | 8.7 mph (14 km/h) |
Hydraulic System
| Pump Type | gear driven |
| Relief Valve Pressure | 3500 psi (24135 kPa) |
| Pump Flow Capacity | 66 gal/min (250 L/min) |
Standard Blade
| Width | 22 ft in (6706 mm) |
| Height | 108 in (2740 mm) |
| Capacity | 57 yd3 (43.6 m3) |
| Cutting Depth | 67.2 in (1708 mm) |
