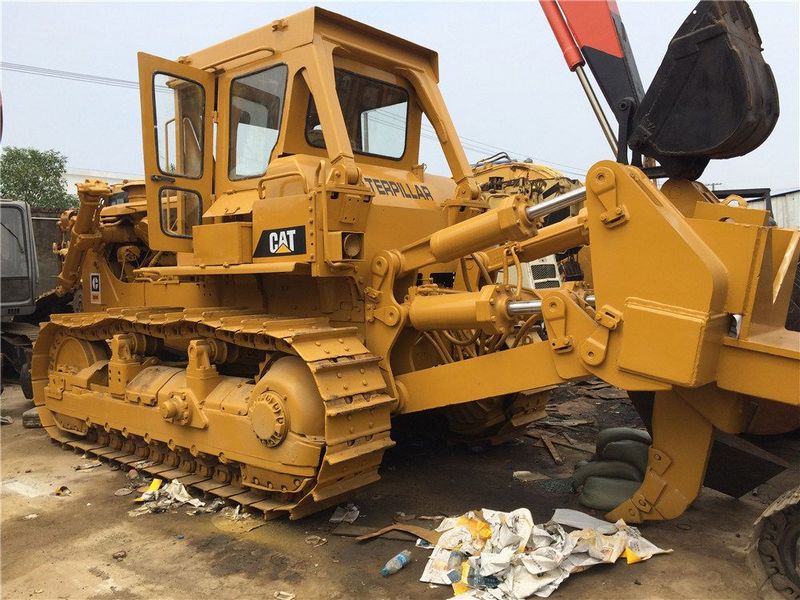

Caterpillar D8K
Browse All Caterpillar or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 21.59 ft in (6580 mm) |
| Width Over Tracks | 9.16 ft in (2790 mm) |
| Height To Top Of Cab | 11.16 ft in (3400 mm) |
| Length Of Track On Ground | 10.34 ft in (3150 mm) |
| Ground Clearance | 1.43 ft in (434 mm) |
| Length W/O Blade | 17.26 ft in (5260 mm) |
Undercarriage
| Track Gauge | 6.99 ft in (2130 mm) |
| Standard Shoe Size | 22.01 in (559 mm) |
| Ground Contact Area | 5456.02 in2 (3.52 m2) |
| Number Of Track Rollers Per Side | 5 |
| Ground Pressure | 12.8 psi (88.26 kPa) |
Engine
| Engine Model | D342 |
| Gross Power | 300 hp (223.8 kw) |
| Displacement | 1244.9 cu in (20.4 L) |
Operational
| Operating Weight | 70503.9 lb (31980 kg) |
| Fuel Capacity | 169.1 gal (640 L) |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (10.9 km/h) |
| Max Speed - Reverse | 8.4 mph (13.5 km/h) |
Standard Blade
| Width | 13.3 ft in (4040 mm) |
