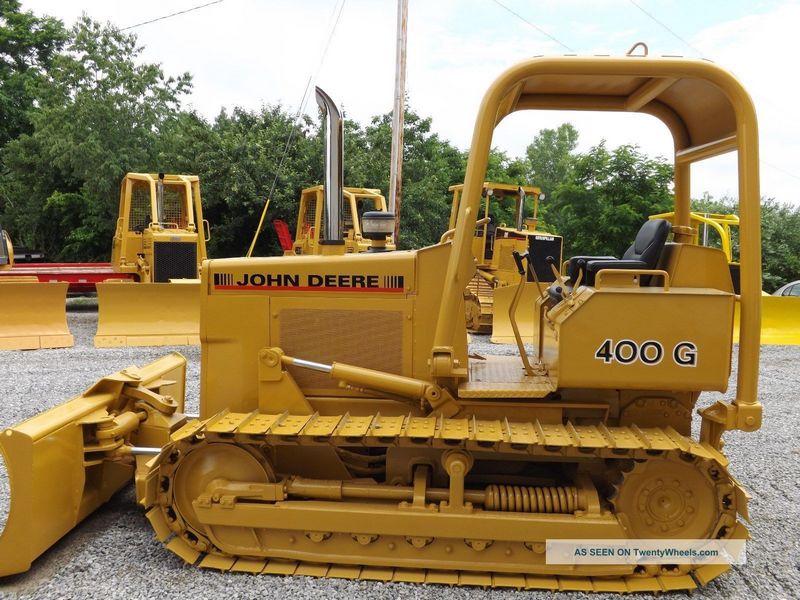

John Deere 400G
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Length Of Track On Ground | 6.5 ft in (1979 mm) |
| Ground Clearance | 0.97 ft in (294 mm) |
| Length W/O Blade | 11.92 ft in (3632 mm) |
Undercarriage
| Standard Shoe Size | 14 in (356 mm) |
| Ground Pressure | 6.1 psi (42 kPa) |
| Ground Contact Area | 1940 in2 (1.26 m2) |
| Number Of Shoes Per Side | 36 |
| Number Of Track Rollers Per Side | 5 |
| Track Pitch | 50 in (1270 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 4039D |
| Gross Power | 63 hp (47 kw) |
| Net Power | 60 hp (44.8 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 188 lb ft (254.9 Nm) |
| Displacement | 239 cu in (4 L) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 11820 lb (5362 kg) |
| Fuel Capacity | 31 gal (117.3 L) |
| Cooling System Fluid Capacity | 3.3 gal (12.3 L) |
| Hydraulic Fluid Capacity | 8.5 gal (32.2 L) |
| Final Drives Fluid Capacity | 14 gal (53 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Hi-Lo-Reverse with direct drive |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 6.2 mph (10 km/h) |
| Max Speed - Reverse | 5.9 mph (9.5 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 2750 psi (18961 kPa) |
| Pump Flow Capacity | 11 gal/min (46.5 L/min) |
Standard Blade
| Width | 7.5 ft in (2286 mm) |
| Height | 28.6 in (727 mm) |
| Capacity | 1.1 yd3 (0.8 m3) |
| Blade Angle (Both Directions) | 50 degrees |
| Cutting Depth | 20.6 in (522 mm) |
