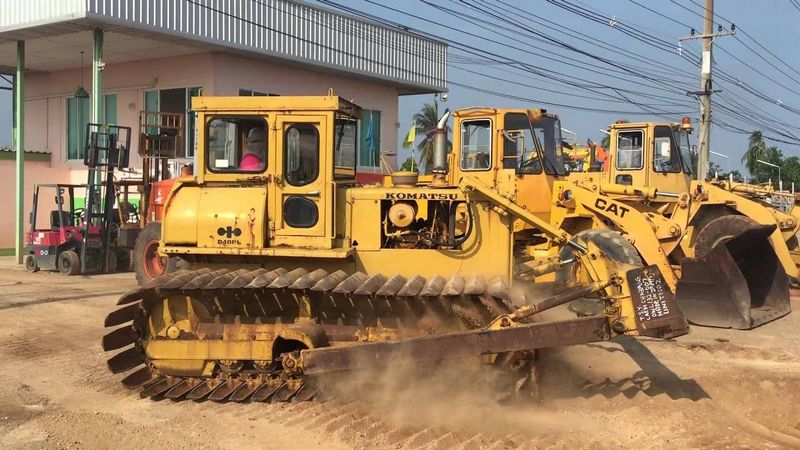

Komatsu D40PL-1
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 15.31 ft in (4665 mm) |
| Width Over Tracks | 11.42 ft in (3480 mm) |
| Height To Top Of Cab | 8.57 ft in (2610 mm) |
| Length Of Track On Ground | 8.5 ft in (2590 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
Undercarriage
| Track Gauge | 7.42 ft in (2260 mm) |
| Standard Shoe Size | 48.04 in (1220 mm) |
| Number Of Shoes Per Side | 43 |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 6.89 in (175 mm) |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D105-3 |
| Gross Power | 80 hp (59.7 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 264.3 cu in (4.4 L) |
Operational
| Operating Weight | 23810 lb (10800 kg) |
Transmission
| Transmission Type | DD |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 13.3 ft in (4030 mm) |
| Height | 23.1 in (585 mm) |
