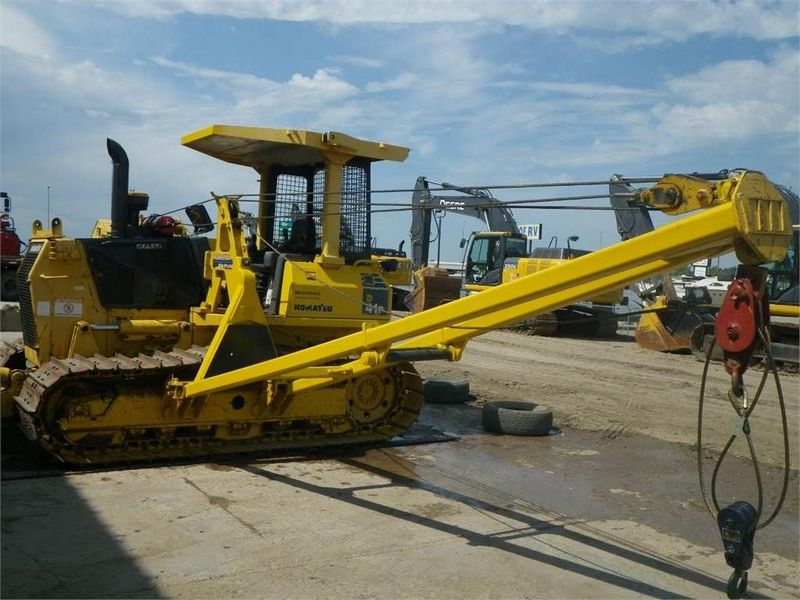

Komatsu D41P-6C
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 16.02 ft in (4880 mm) |
| Width Over Tracks | 5.83 ft in (1790 mm) |
| Height To Top Of Cab | 9.5 ft in (2900 mm) |
| Length Of Track On Ground | 9 ft in (2745 mm) |
| Ground Clearance | 1.17 ft in (365 mm) |
Undercarriage
| Track Gauge | 5.88 ft in (1790 mm) |
| Standard Shoe Size | 28 in (700 mm) |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 3.41 psi (23.5 kPa) |
| Number Of Shoes Per Side | 44 |
| Ground Contact Area | 5960 in2 (3.85 m2) |
| Track Pitch | 70 in (1790 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | SA6D102E-2A |
| Net Power | 110 hp (82 kw) |
| Displacement | 359 cu in (5.9 L) |
Operational
| Operating Weight | 25400 lb (11520 kg) |
| Fuel Capacity | 66 gal (250 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity | 5 gal (19 L) |
| Hydraulic Fluid Capacity | 11.6 gal (44 L) |
| Final Drives Fluid Capacity | 3.4 gal (13 L) |
Transmission
| Transmission Type | Komatsu HYDROSHIFT transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 4.7 mph (7.6 km/h) |
| Max Speed - Reverse | 5.8 mph (9.4 km/h) |
Standard Blade
| Width | 11 ft in (3350 mm) |
| Blade Angle (Both Directions) | 30 degrees |
