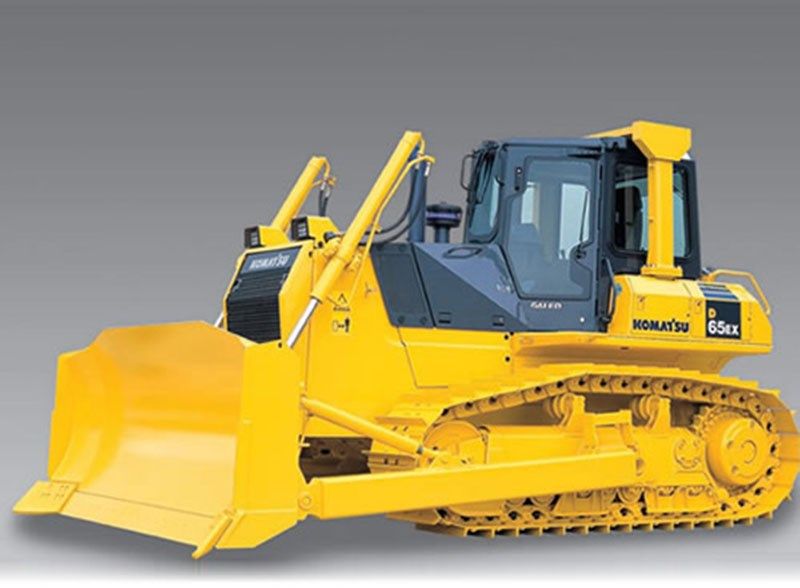

Komatsu D65EX-16SIGMA
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Ground Clearance | 16.34 in (415 mm) |
| Track Gauge | 6.17 ft in (1880 mm) |
| Track Length On Ground | 9.75 ft in (2970 mm) |
| Height - Top Of Cab | 10.37 ft in (3160 mm) |
Undercarriage
| Shoe Size | 22.05 in (560 mm) |
| Link Type | Parallel Link Undercarriage System |
| Type Of Shoes(Standard) | Single grousers |
Engine
| Horsepower, Gross-Sae J1995 | 207.9 hp (155 kw) |
| Horsepower, Net-Iso 9249 | 205.2 hp (153 kw) |
| Horsepower, Net-Sae J1349 | 205.2 hp (153 kw) |
| Fan Drive Method | Hydraulic |
| Number Of Cylinders | 6 |
| Engine Model | Komatsu SAA6D114E-3 |
| Power Measured @ | 1950 rpm |
| Displacement | 504.7 cu in (8.3 L) |
Driveline
| Maximum Speeds Fwd | 7 mph (11.2 km/h) |
| Maximum Speeds Rev | 8.4 mph (13.4 km/h) |
| Number Of Speeds - Forward | 3 |
| Number Of Speeds - Reverse | 3 |
Capacities
| Fuel Tank | 109.7 gal (415 L) |
Operational
| Blade Capacity | 5.6 yd3 (4.3 m3) |
| Blade Type | PAT |
| Blade Length | 152.4 in (3870 mm) |
| Blade Height | 48.7 in (1235 mm) |
| Blade Cut Depth | 17.4 in (440 mm) |
| Ripper Type | Fixed |
| Ripper Depth | 23.3 in (590 mm) |
Weights
| Operating Weight | 46914.4 lb (21280 kg) |
| Ripper Weight | 3902.2 lb (1770 kg) |
| Blade Weight | 5269.1 lb (2390 kg) |
Hydraulic System
| Hydraulic System Type | Closed-center Load Sensing System |
