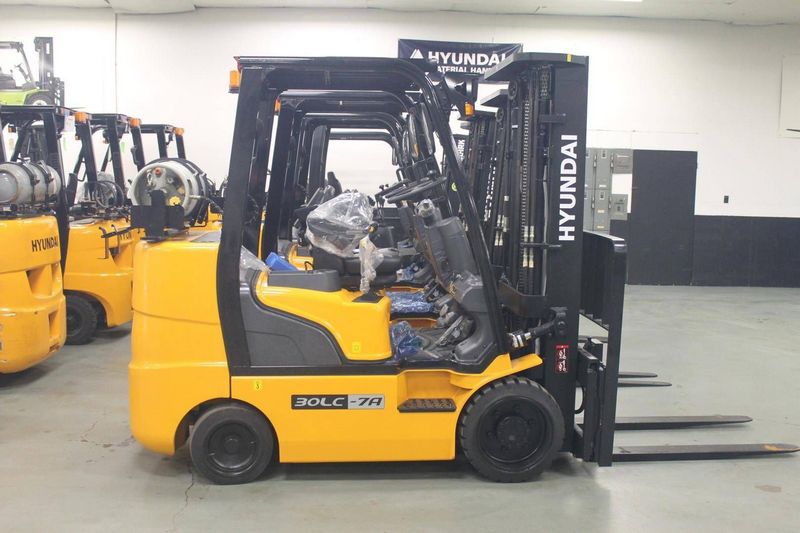

Hyundai 30LC-7
Contents:
Dimensions
| Length To Fork Face | 7.78 ft in (2370 mm) |
| Overall Width | 3.65 ft in (1110 mm) |
| Overall Height - Mast Lowered | 7.19 ft in (2190 mm) |
| Wheelbase | 4.63 ft in (1410 mm) |
| Ground Clearance | 4.53 in (115 mm) |
| Height To Top Of Overhead Guard | 6.86 ft in (2090 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 6.82 ft in (2076 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Load Center | 24 in (609.6 mm) |
| Lift Speed | 98.43 ft/min (30 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | HMC Beta |
| Power | 49.7 hp (37 kw) |
| Displacement | 120.6 cu in (2 L) |
| Fuel Type | Gas/Petrol |
Operational
| Operating Weight | 9409 lb (4267.9 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.5 mph (18.6 km/h) |
