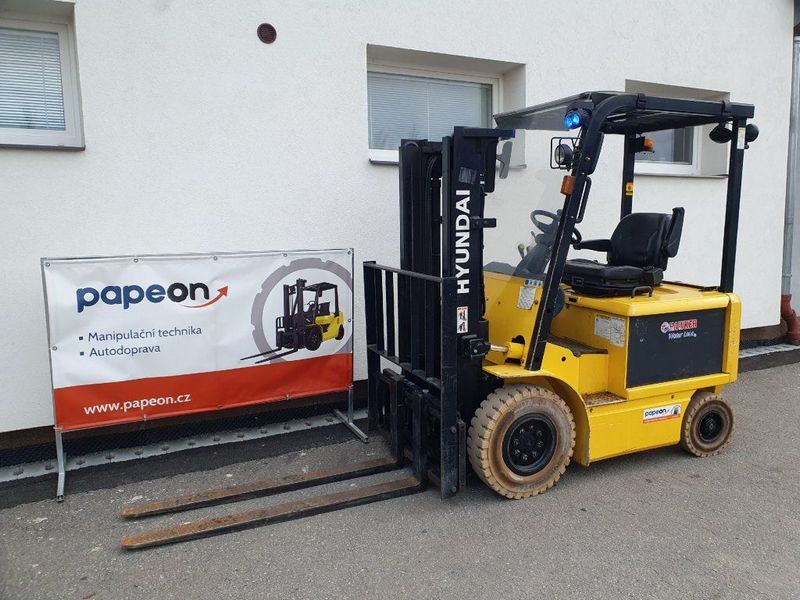

Hyundai HBF20-7
Contents:
Dimensions
| Length To Fork Face | 7.44 ft in (2267 mm) |
| Overall Width | 3.9 ft in (1186 mm) |
| Overall Height - Mast Lowered | 7.14 ft in (2175 mm) |
| Wheelbase | 4.66 ft in (1420 mm) |
| Ground Clearance | 5.12 in (130 mm) |
| Height To Top Of Overhead Guard | 7.29 ft in (2220 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Right Angle Stack | 11.24 ft in (3425 mm) |
| Turning Radius | 6.44 ft in (1960 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Load Capacity | 4000 lb (1814.37 kg) |
| Lower Speed | 114.1 ft/min (114.1 -) |
| Load Center | 24 in (609.6 mm) |
| Lift Speed | 72.8 ft/min (72.8 -) |
Engine
| Engine Model | HBF 20-7 |
| Fuel Type | Electrical Motor |
Operational
| Operating Weight | 8741 lb (3964.9 kg) |
| Tire Type | Superelastic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.5 mph (15.3 km/h) |
