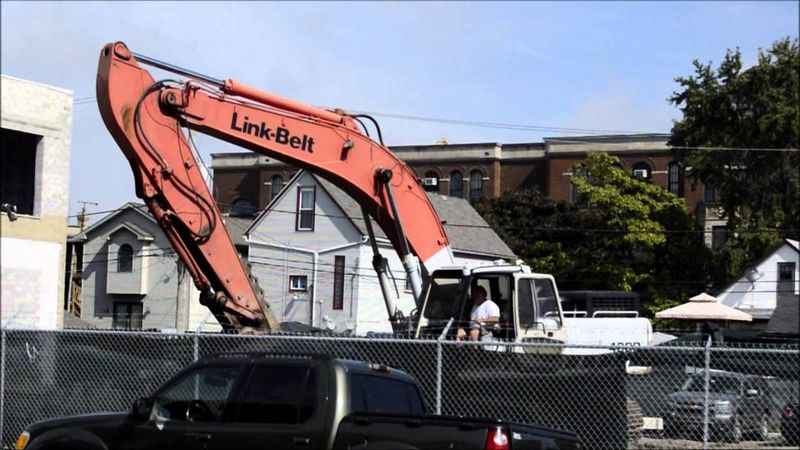

Link-Belt 4300 Quantum Road Builder
Browse All Link-Belt or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 35.83 ft in (10920 mm) |
| Shipping Height Of Unit | 11.19 ft in (3410 mm) |
| Max Cutting Height | 34.45 ft in (10500 mm) |
| Max Loading Height | 28.38 ft in (8650 mm) |
| Max Reach Along Ground | 35.9 ft in (10940 mm) |
| Max Vertical Wall Digging Depth | 20.02 ft in (6100 mm) |
| Max Digging Depth | 23.53 ft in (7170 mm) |
| Boom/Stick Option (Hex) 1 | Boom 21'2" (6450mm) / Stick 10'7" (3230mm) |
Dimensions
| Ground Clearance | 2.32 ft in (706 mm) |
| Height To Top Of Cab | 10.96 ft in (3340 mm) |
| Width To Outside Of Tracks | 11.95 ft in (3640 mm) |
| Length Of Track On Ground | 13.26 ft in (4040 mm) |
| Tail Swing Radius | 11 ft in (3350 mm) |
| Removal Counterweight Clearance | 4.73 ft in (1440 mm) |
Undercarriage
| Track Gauge | 9.65 ft in (2940 mm) |
| Shoe Size | 27.56 in (700 mm) |
| Number Of Shoes Per Side | 49 |
| Max Travel Speed | 3.1 mph (4.99 km/h) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 8.7 psi (59.99 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | MII-C265 |
| Net Power | 240 hp (179 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 900 lb ft (1220.3 Nm) |
| Displacement | 661 cu in (10.9 L) |
| Aspiration | Turbocharged |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 83304 lb (37786.1 kg) |
| Fuel Capacity | 153.3 gal (580 L) |
| Cooling System Fluid Capacity | 15.1 gal (56.8 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 9 gal (34 L) |
| Swing Drive Fluid Capacity | 3.4 gal (12.5 L) |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 4620 psi (31853.8 kPa) |
| Hydraulic Pump Flow Capacity | 142 gal/min (537.6 L/min) |
Swing Mechanism
| Swing Speed | 10.1 rpm |
| Swing Torque | 73709 lb ft (99936 Nm) |
Buckets
| Reference Bucket Capacity | 1.5 yd3 (1.2 m3) |
| Minimum Bucket Capacity | 1.2 yd3 (0.9 m3) |
| Maximum Bucket Capacity | 2.8 yd3 (2.2 m3) |
