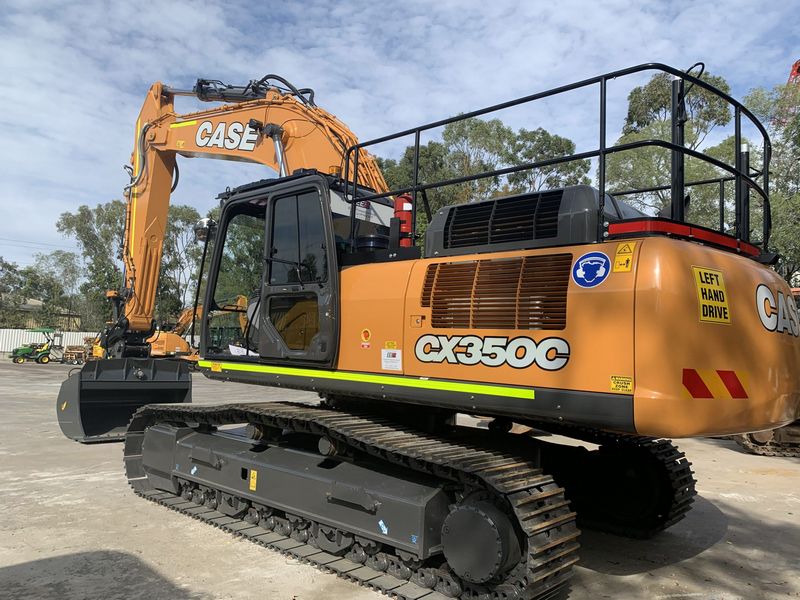

Case CX350C
Browse All Case or Hydraulic Excavator Models
Contents:
Boom/Stick Option (Hex) 1
| Shipping Length Of Unit | 36.55 ft in (11140 mm) |
| Shipping Height Of Unit | 11.23 ft in (3420 mm) |
| Max Cutting Height | 34.03 ft in (10370 mm) |
| Max Loading Height | 23.73 ft in (7230 mm) |
| Max Reach Along Ground | 36.03 ft in (10980 mm) |
| Max Digging Depth | 24.09 ft in (7340 mm) |
| Boom/Stick Option (Hex) 1 | Boom - 6.45 m / Arm - 3.25 m |
Boom/Stick Option (Hex) 2
| Shipping Length Of Unit | 37.24 ft in (11350 mm) |
| Max Cutting Height | 32.32 ft in (9850 mm) |
| Shipping Height Of Unit | 11.98 ft in (3650 mm) |
| Max Loading Height | 22.22 ft in (6770 mm) |
| Max Reach Along Ground | 32.78 ft in (9990 mm) |
| Max Digging Depth | 20.67 ft in (6300 mm) |
| Boom/Stick Option (Hex) 2 | Boom - 6.45 m / Arm - 2.21 m |
Boom/Stick Option (Hex) 3
| Shipping Length Of Unit | 36.85 ft in (11230 mm) |
| Max Cutting Height | 33.86 ft in (10320 mm) |
| Max Loading Height | 23.43 ft in (7140 mm) |
| Shipping Height Of Unit | 11.95 ft in (3640 mm) |
| Max Reach Along Ground | 34.36 ft in (10470 mm) |
| Max Digging Depth | 22.09 ft in (6730 mm) |
| Boom/Stick Option (Hex) 3 | Boom - 6.45 m / Arm - 2.63 m |
Boom/Stick Option (Hex) 4
| Shipping Length Of Unit | 36.72 ft in (11190 mm) |
| Shipping Height Of Unit | 11.88 ft in (3620 mm) |
| Max Cutting Height | 35.01 ft in (10670 mm) |
| Max Loading Height | 24.74 ft in (7540 mm) |
| Max Reach Along Ground | 38.46 ft in (11720 mm) |
| Max Digging Depth | 26.71 ft in (8140 mm) |
| Boom/Stick Option (Hex) 4 | Boom - 6.45 m / Arm - 4.04 m |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Height To Top Of Cab | 10.7 ft in (3260 mm) |
| Width To Outside Of Tracks | 10.5 ft in (3200 mm) |
| Length Of Track On Ground | 16.34 ft in (4980 mm) |
| Tail Swing Radius | 11.65 ft in (3550 mm) |
| Wheelbase | 13.26 ft in (4040 mm) |
Undercarriage
| Drawbar Pull | 59349.56 lb (264 kN) |
| Number Of Track Rollers Per Side | 8 |
| Ground Pressure | 8.27 psi (57 kPa) |
| Number Of Shoes Per Side | 48 |
| Number Of Carrier Rollers Per Side | 2 |
| Max Travel Speed | 3.36 mph (5.4 km/h) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | ISUZU |
| Engine Model | AL-6HK1X |
| Gross Power | 265.6 hp (198 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 769.3 lb ft (1043 Nm) |
| Displacement | 475.4 cu in (7.8 L) |
| Torque Measured @ | 1500 rpm |
| Bore | 4.6 in (115 mm) |
| Stroke | 5 in (125 mm) |
Operational
| Operating Weight | 76500.4 lb (34700 kg) |
| Fuel Capacity | 153.3 gal (580 L) |
| Cooling System Fluid Capacity | 9.4 gal (35.4 L) |
| Hydraulic System Fluid Capacity | 92.5 gal (350 L) |
| Hydraulic Pump Flow Capacity | 150.6 gal/min (570 L/min) |
Swing Mechanism
| Swing Speed | 9.7 rpm |
